Validation Data Gallery

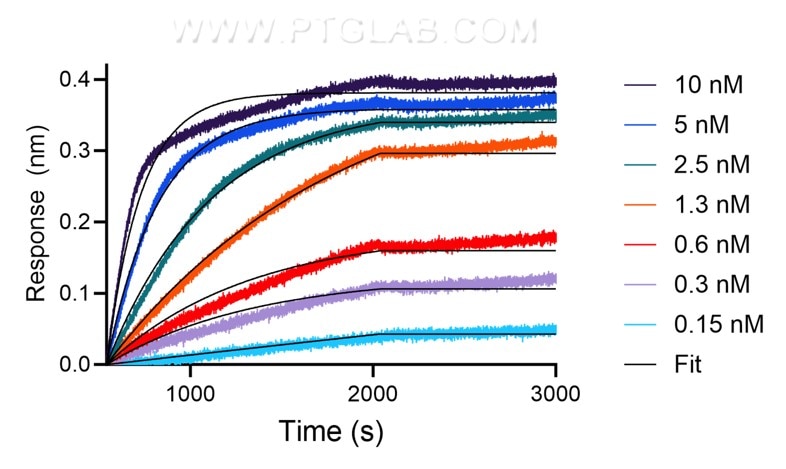

  • The affinity of anti-human TIGIT recombinant VHH towards human TIGIT was determined using biolayer interferometry (BLI). Biotinylated, recombinant human TIGIT was immobilized on Streptavidin biosensors and assayed with 0.15 to 10 nM of CoraLite® Plus 647-conjugated TIGIT VHH (CL647-tgt). Fit indicates a 1:1 binding model fitted to the data.

    The affinity of anti-human TIGIT recombinant VHH towards human TIGIT was determined using biolayer interferometry (BLI). Biotinylated, recombinant human TIGIT was immobilized on Streptavidin biosensors and assayed with 0.15 to 10 nM of CoraLite® Plus 647-conjugated TIGIT VHH (CL647-tgt). Fit indicates a 1:1 binding model fitted to the data.

ChromoTek TIGIT VHH, recombinant binding protein for 2x Cys conjugation

Alpaca anti-TIGIT VHH, purified recombinant binding protein. Suitable for for cysteine conjugation with thiol-reactive reagents, e.g. maleimides. Note: unconjugated VHHs are not suited for usage without prior labeling, since they contain reactive Cysteines. Shipment and storage buffers contain TCEP to keep Cysteins reduced.
Cat No. tgtCys2

Host/Type

Alpaca VHH

Reactivity

Human

Applications

Conjugation

Conjugate

Unconjugated

TIGIT-Nanobody, TIGIT-single domain antibody (sdAb), DKFZp667A205; FLJ39873; VSIG9; VSTM3

Size/Concentration:

-/ -


ご購入について

国内販売は「コスモ・バイオ株式会社」を通じて行っております。お見積り・ご注文はお近くの販売代理店へご連絡ください。


国内在庫・納期について

約2万点のプロテインテック製品をコスモバイオ社物流センター(国内)に在庫しています。国内在庫の有無はコスモバイオ社ホームページの「品番検索」でカタログ番号を検索して確認できます。


保証・サポートについて

テクニカルサポートまたはご購入後1年間の交換/補填対応を承ります。詳細はこちらをご覧ください。


Product Information

Alpaca anti-TIGIT VHH, purified recombinant binding protein. Suitable for for cysteine conjugation with thiol-reactive reagents, e.g. maleimides. Note: unconjugated VHHs are not suited for usage without prior labeling, since they contain reactive Cysteines. Shipment and storage buffers contain TCEP to keep Cysteins reduced.

ApplicationsConjugation
ReactivityHuman
ConjugateUnconjugated
Type Nanobody
ClassRecombinant
HostAlpaca
Affinityin the picomolar range, below the assay limit (biolayer interferometry)
Molecular Weight14.346 kDa
FormLiquid
RRIDAB_3101924
Storage Buffer10 mM HEPES, 500 mM NaCl, pH 7.0, 1 mM TCEP, 0.09% sodium azide
Storage ConditionStore at -20°C; Avoid exposure to light. Shipped at dry ice.
BackgroundTIGIT (T-cell immunoreceptor with Ig and ITIM domains), also known as VSIG9 or VSTM3, is an immune receptor expressed on T cells, including Treg and memory subsets, as well as on NK cells (PMID: 19011627). It contains an immunoglobulin variable domain, a transmembrane domain and an immunoreceptor tyrosine-based inhibitory motif (ITIM). TIGIT binds to poliovirus receptor (PVR, also called CD155) with high affinity, and also to PVRL2 (CD112) with lower affinity. The interaction of TIGIT with PVR on dendritic cells increases the secretion of IL-10 and decreases the secretion of proinflammatory cytokine and suppresses T-cell activation by promoting the generation of mature immunoregulatory dendritic cells. TIGIT can inhibit NK cytotoxicity directly through its ITIM (PMID: 19815499).
