Validation Data Gallery

Filter: AllWBIHCIF/ICCFC (Intra)

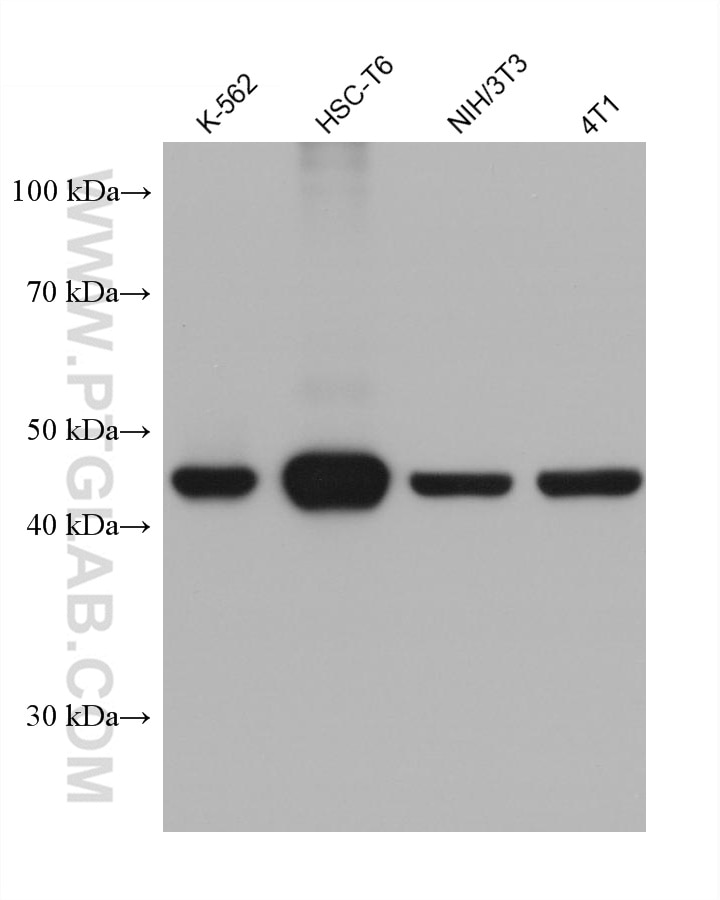

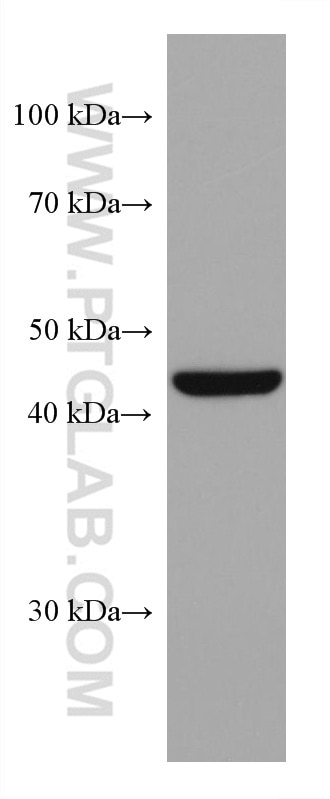

WB analysis using 67863-1-Ig
Various lysates were subjected to SDS PAGE followed by western blot with 67863-1-Ig (HSP47 antibody) at dilution of 1:20000 incubated at room temperature for 1.5 hours.

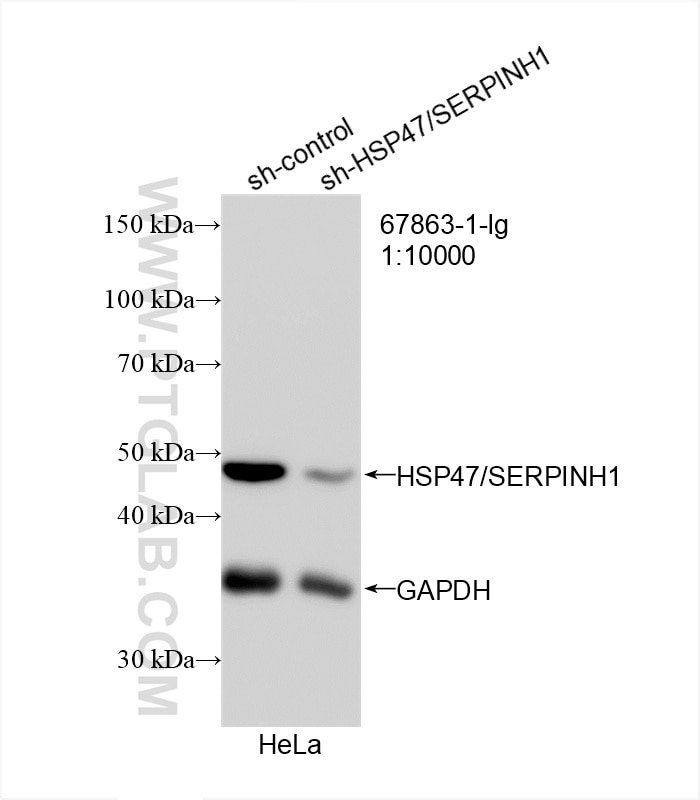

WB analysis of HeLa using 67863-1-Ig
WB result of HSP47/SERPINH1 antibody (67863-1-Ig; 1:10000; incubated at room temperature for 1.5 hours) with sh-Control and sh-HSP47/SERPINH1 transfected HeLa cells.
WB analysis of NIH/3T3 using 67863-1-Ig
NIH/3T3 cells were subjected to SDS PAGE followed by western blot with 67863-1-Ig (SERPINH1 antibody) at dilution of 1:20000 incubated at room temperature for 1.5 hours.

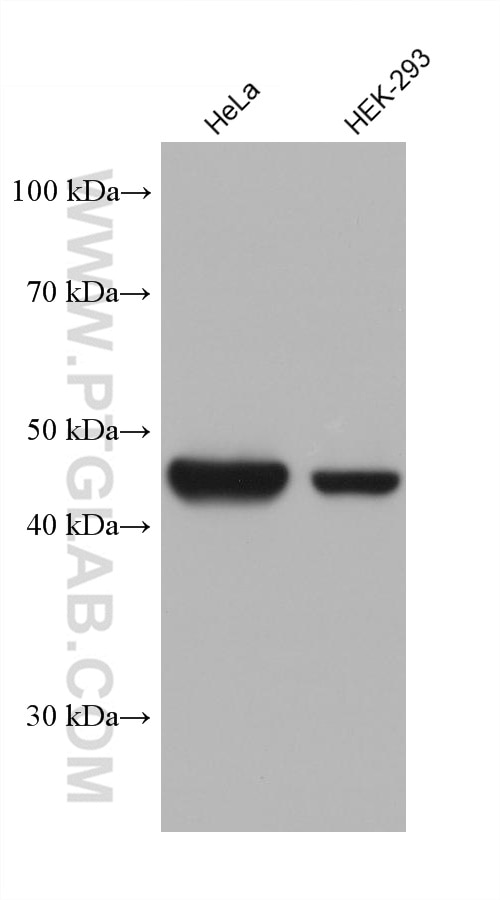

WB analysis using 67863-1-Ig
Various lysates were subjected to SDS PAGE followed by western blot with 67863-1-Ig (HSP47 antibody) at dilution of 1:20000 incubated at room temperature for 1.5 hours.

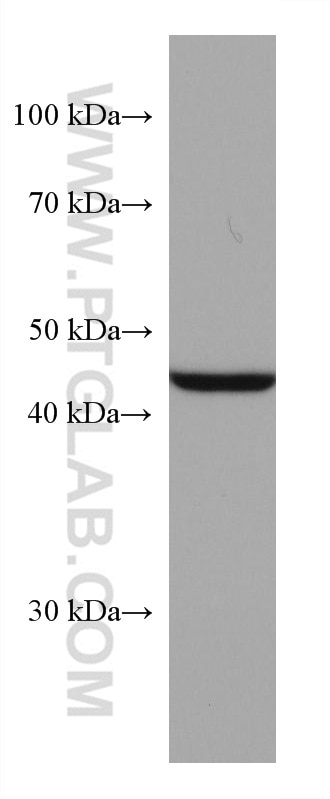

WB analysis of LNCaP using 67863-1-Ig
LNCaP cells were subjected to SDS PAGE followed by western blot with 67863-1-Ig (HSP47 antibody) at dilution of 1:20000 incubated at room temperature for 1.5 hours.

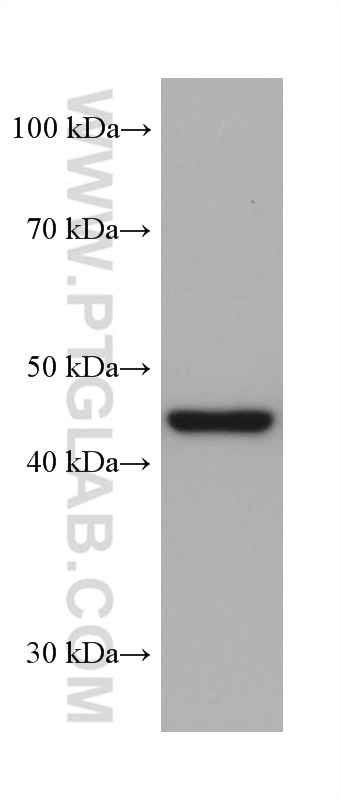

WB analysis of Jurkat using 67863-1-Ig
Jurkat cells were subjected to SDS PAGE followed by western blot with 67863-1-Ig (HSP47 antibody) at dilution of 1:20000 incubated at room temperature for 1.5 hours.

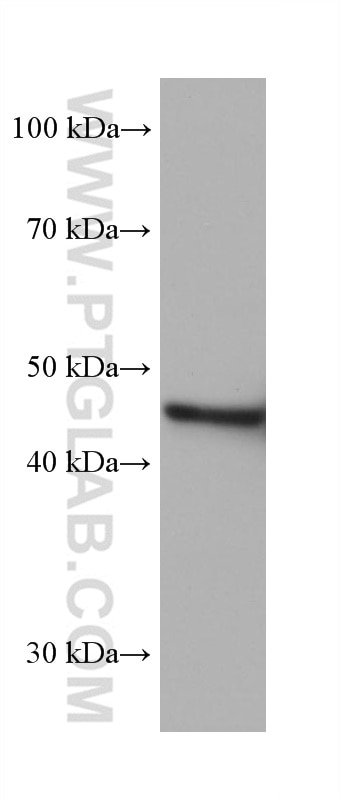

WB analysis of HEK-293T using 67863-1-Ig
HEK-293T cells were subjected to SDS PAGE followed by western blot with 67863-1-Ig (SERPINH1 antibody) at dilution of 1:20000 incubated at room temperature for 1.5 hours.
IHC staining of human renal cell carcinoma using 67863-1-Ig
Immunohistochemical analysis of paraffin-embedded human renal cell carcinoma tissue slide using 67863-1-Ig (HSP47 antibody) at dilution of 1:2000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).
IHC staining of human renal cell carcinoma using 67863-1-Ig
Immunohistochemical analysis of paraffin-embedded human renal cell carcinoma tissue slide using 67863-1-Ig (HSP47 antibody) at dilution of 1:2000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).
IF Staining of HeLa using 67863-1-Ig
Immunofluorescent analysis of (4% PFA) fixed HeLa cells using HSP47 antibody (67863-1-Ig, Clone: 2A8F6 ) at dilution of 1:800 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L), CL594-Phalloidin (red).
IF Staining of HepG2 using 67863-1-Ig
Immunofluorescent analysis of (-20°C Ethanol) fixed HepG2 cells using HSP47 antibody (67863-1-Ig, Clone: 2A8F6 ) at dilution of 1:800 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L).
FC experiment of HepG2 using 67863-1-Ig
1x10^6 HepG2 cells were intracellularly stained with 0.25 ug HSP47/SERPINH1 Monoclonal antibody (67863-1-Ig, Clone:2A8F6) and CoraLite®488-Conjugated Goat Anti-Mouse IgG(H+L) (SA00013-1)(red), or 0.25 ug Isotype Control (blue). Cells were fixed and permeabilized with Intracellular Flow Cytometry Fixation & Permeabilization Buffer Kit (PF00019).

Featured Product
KD/KO Validated

HSP47/SERPINH1 Monoclonal antibody

HSP47/SERPINH1 Monoclonal Antibody for WB, IHC, IF/ICC, FC (Intra), ELISA

Cat No. 67863-1-Ig

Clone No.2A8F6

Publications(4)

Host / Isotype

Mouse / IgG1

Reactivity

human, mouse, rat

Applications

WB, IHC, IF/ICC, FC (Intra), IP, CoIP, ELISA

Synonyms

HSP47, SERPINH1, 2A8F6, 47 kDa heat shock protein, Arsenic-transactivated protein 3

Formulation: PBS, Azide, Glycerol

PBS, Azide, Glycerol

PBS Only

Conjugate: Unconjugated

Unconjugated

CoraLite® Plus 488 CoraLite®594

Size/Concentration:

-/ -

ご購入について

国内販売は「コスモ・バイオ株式会社」を通じて行っております。お見積り・ご注文はお近くの販売代理店へご連絡ください。

国内在庫・納期について

約2万点のプロテインテック製品をコスモバイオ社物流センター（国内）に在庫しています。国内在庫の有無はコスモバイオ社ホームページの「品番検索」でカタログ番号を検索して確認できます。

保証・サポートについて

テクニカルサポートまたはご購入後1年間の交換／補填対応を承ります。詳細はこちらをご覧ください。

Overview

Tested Applications
Product Information
Publications (4)
Protocols

データシート［PDF］を印刷

MSDS

Tested Applications

Positive WB detected in	K-562 cells, HEK-293T cells, HeLa cells, Jurkat cells, LNCaP cells, NIH/3T3 cells, HEK-293 cells, HSC-T6 cells, 4T1 cells
Positive IHC detected in	human renal cell carcinoma tissue **Note: suggested antigen retrieval with TE buffer pH 9.0; () Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0***
Positive IF/ICC detected in	HeLa cells, HepG2 cells
Positive FC (Intra) detected in	HepG2 cells

Recommended dilution

Application	Dilution
Western Blot (WB)	WB : 1:5000-1:50000
Immunohistochemistry (IHC)	IHC : 1:1000-1:4000
Immunofluorescence (IF)/ICC	IF/ICC : 1:400-1:1600
Flow Cytometry (FC) (INTRA)	FC (INTRA) : 0.25 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

Published Applications

KD/KO	See 1 publications below
WB	See 3 publications below
IHC	See 1 publications below
IF	See 2 publications below
IP	See 1 publications below
CoIP	See 2 publications below

Product Information

67863-1-Ig targets HSP47/SERPINH1 in WB, IHC, IF/ICC, FC (Intra), IP, CoIP, ELISA applications and shows reactivity with human, mouse, rat samples.

Tested Reactivity	human, mouse, rat
Cited Reactivity	human, rat
Host / Isotype	Mouse / IgG1
Class	Monoclonal
Type	Antibody
Immunogen	CatNo: Ag30999 Product name: Recombinant human SERPINH1 protein Source: e coli.-derived, PET28a Tag: 6*His Domain: 1-418 aa of BC014623 Sequence: MRSLLLLSAFCLLEAALAAEVKKPAAAAAPGTAEKLSPKAATLAERSAGLAFSLYQAMAKDQAVENILVSPVVVASSLGLVSLGGKATTASQAKAVLSAEQLRDEEVHAGLGELLRSLSNSTARNVTWKLGSRLYGPSSVSFADDFVRSSKQHYNCEHSKINFRDKRSALQSINEWAAQTTDGKLPEVTKDVERTDGALLVNAMFFKPHWDEKFHHKMVDNRGFMVTRSYTVGVMMMHRTGLYNYYDDEKEKLQIVEMPLAHKLSSLIILMPHHVEPLERLEKLLTKEQLKIWMGKMQKKAVAISLPKGVVEVTHDLQKHLAGLGLTEAIDKNKADLSRMSGKKDLYLASVFHATAFELDTDGNPFDQDIYGREELRSPKLFYADHPFIFLVRDTQSGSLLFIGRLVRPKGDKMRDEL 相同性解析による交差性が予測される生物種
Full Name	serpin peptidase inhibitor, clade H (heat shock protein 47), member 1, (collagen binding protein 1)
Calculated molecular weight	46 kDa
Observed molecular weight	46 kDa
GenBank accession number	BC014623
Gene Symbol	HSP47/SERPINH1
Gene ID (NCBI)	871
RRID	AB_2918621
Conjugate	Unconjugated
Form
Form	Liquid
Purification Method	Protein G purification
UNIPROT ID	P50454
Storage Buffer	PBS with 0.02% sodium azide and 50% glycerol{{ptg:BufferTemp}}7.3
Storage Conditions	Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage.

Protocols

Product Specific Protocols
FC protocol for HSP47/SERPINH1 antibody 67863-1-Ig	Download protocol
IF protocol for HSP47/SERPINH1 antibody 67863-1-Ig	Download protocol
IHC protocol for HSP47/SERPINH1 antibody 67863-1-Ig	Download protocol
WB protocol for HSP47/SERPINH1 antibody 67863-1-Ig	Download protocol

Standard Protocols
Click here to view our Standard Protocols

Publications

Species	Application	Title
human	IF	ACS Appl Mater Interfaces 3D Artificial Skin Model As a Novel Strategy for the Detection of Pyroptosis-Cascade Activation in Amyotrophic Lateral Sclerosis. Authors - Enrico Scarpa View Article
human	WB,IHC,IF,CoIP	iScience SERPINH1 modulates apoptosis by inhibiting P62 ubiquitination degradation to promote bone metastasis of prostate cancer Authors - Chen Tang KD Validated View Article
rat	WB	J Proteome Res Data-Independent Acquisition Proteomics and N-Terminomics Methods Reveal Alterations in Mitochondrial Function and Metabolism in Ischemic-Reperfused Hearts Authors - Bridgette Hartley View Article
human	WB,IP,CoIP	Elife Hsp47 promotes biogenesis of multi-subunit neuroreceptors in the endoplasmic reticulum Authors - Ya-Juan Wang View Article
