Product Information
Fluorescently-labeled antibodies can be used for a variety of immunoassays such as immunohistochemistry, immunocytochemistry, flow cytometry, and fluorescent Western blot.
This antibody conjugation kit is designed to covalently conjugate CoraLite® Plus 750 to antibodies in 1-2 hours. Conjugated antibodies can be used immediately or stored at 4°C for up to 12 months. This kit is suitable for three reactions of labeling 100 ug primary antibody.
Antibody requirements: This kit is compatible with IgGs at 1 mg/mL in carrier-free buffer (PBS) with <0.1% BSA. Antibody buffer must be azide and glycerol-free.
Technical Principles:
The ChemBright product series is developed based on maleimide chemistry and represents innovative upgrades over conventional technologies.
Traditional maleimide conjugation relies on reductive cleavage of interchain disulfide bonds in antibodies to expose thiol groups for subsequent conjugation. However, excess reducing agents in the system tend to cause over-reduction and structural fragmentation of antibodies, generating biologically inactive antibody fragments and compromising the quality of labeled conjugates.
The NHS ester conjugation method reacts with primary amines (–NH₂) on the antibody surface to form stable amide bonds.
ChemBright technology does not require reduction of antibody disulfide bonds. Instead, it specifically converts primary amines on antibody lysine residues into reactive thiol groups (4–6 thiols), fundamentally eliminating antibody inactivation caused by over-reduction. This approach removes the need for scavenging excess reducing agents, streamlines workflows, and substantially improves the yield and bioactivity of conjugated antibodies.

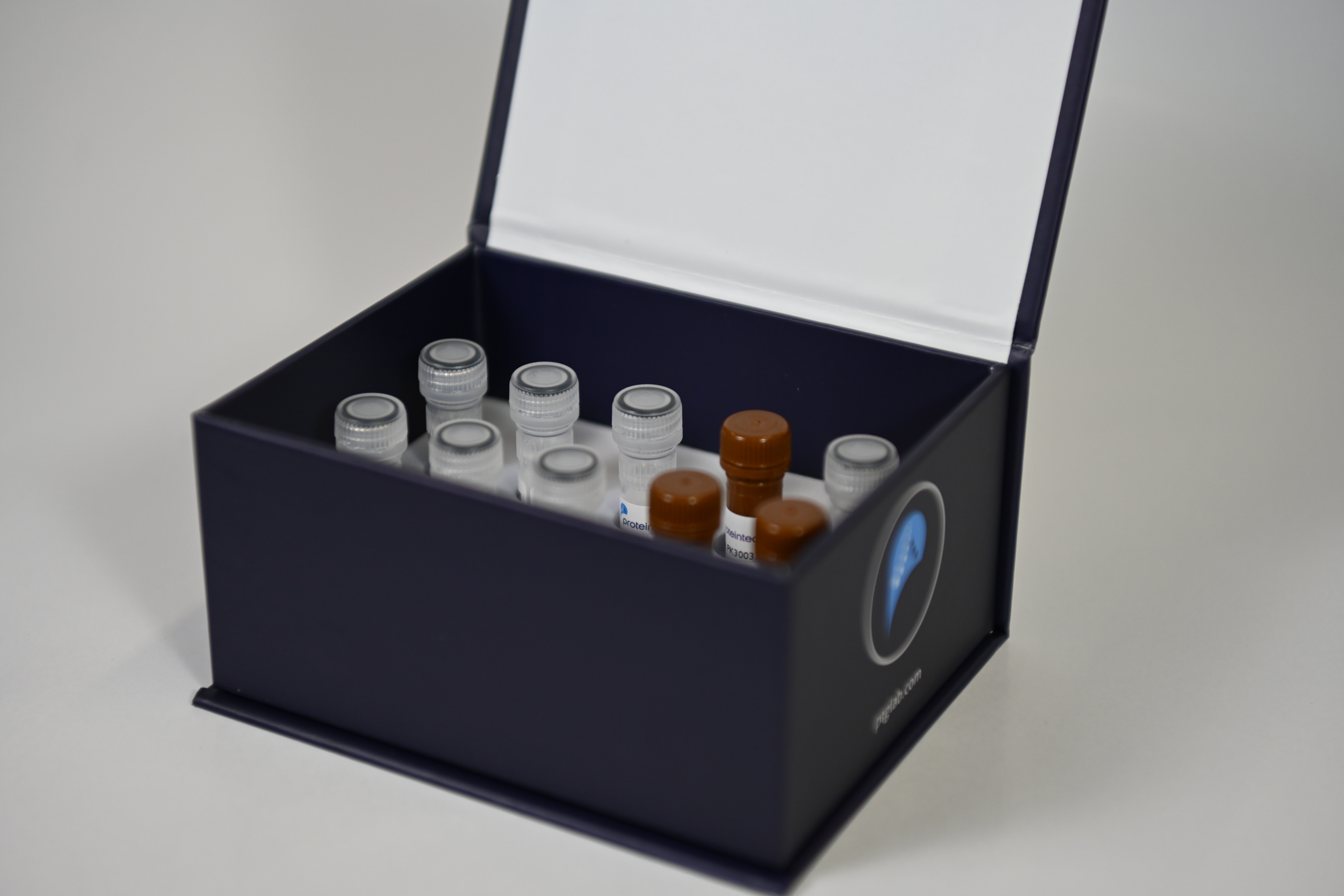

Components
Component | Catalog No. | Size |
Vial A: Antibody Modifier Reagent | PK3003X-A | 3*100 ug |
Vial B: Lyophilized CoraLite® Plus 750 | PK30034-B | 3*100 ug |
Storage Vial C | PK3003X-C | 3*100 ug |
Quenching Reagent | PK3003X-Q | 200 uL |
Storage
Store at room temperature (20-25℃) in the dark.
Usage
Note: Before you begin, equilibrate primary antibody to room temperature. Primary antibody should be in carrier-free buffer (PBS) at 1 mg/mL with <0.1% BSA. Spin down Vial A (Antibody Modifier Reagent) and Vial B (lyophilized dye) to ensure that lyophilized contents are at the bottom of the tube.
Protocol:
1. Add 100 ug of primary antibody to Vial A (lyophilized Antibody Modifier Reagent). Pipette to mix.
2. Incubate for 15 min at RT.
3. Transfer entire contents of Vial A to Vial B (lyophilized dye). Pipette to mix.
4. Rotate for 30 minutes to 1 hour at RT. Protect from light. Spin down Vial B.
5. Add 20 uL of Quenching Reagent to Vial B. Transfer entire contents of Vial B to Storage Vial C. Pipette to mix.
6. Incubate for 10 minutes. Conjugated antibody is now ready to use.
Picture Protocol:

Additional Information
1. Titrations of the conjugated antibody are recommended to find the optimal antibody dilution for your application.
2. Store conjugated antibody in Vial C sealed at 4°C. Blank labels are provided to label Vial C.
3. It is recommended to add a preservative such as sodium azide to the conjugated antibody for long-term storage.
4. The estimated final concentration of the conjugated antibody is 0.83 mg/mL.
Cited in Article as
pk30034, ChemBright CoraLite® Plus 750 Antibody Conjugation Kit, Proteintech, IL, USA
