Validation Data Gallery

Filter: AllWBIPIHCIF-PIF/ICCFC (Intra)

WB analysis using 13938-1-AP
Various lysates were subjected to SDS PAGE followed by western blot with 13938-1-AP (Calponin antibody) at dilution of 1:30000 incubated at room temperature for 1.5 hours.
WB analysis of mouse heart using 13938-1-AP
mouse heart tissue were subjected to SDS PAGE followed by western blot with 13938-1-AP (CNN1 antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.
WB analysis of mouse lung using 13938-1-AP
mouse lung tissue were subjected to SDS PAGE followed by western blot with 13938-1-AP (CNN1 antibody) at dilution of 1:800 incubated at room temperature for 1.5 hours.

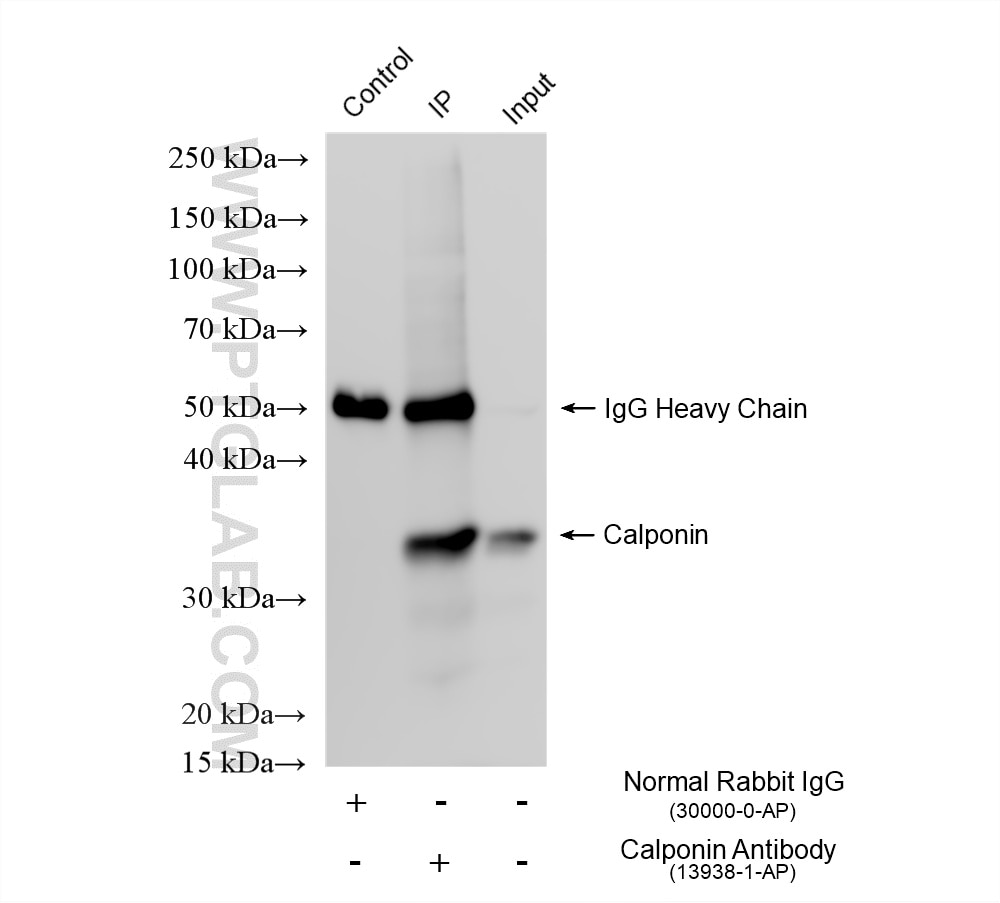

IP experiment of mouse lung using 13938-1-AP
IP result of anti-Calponin (IP:13938-1-AP, 4ug; Detection:13938-1-AP 1:1000) with mouse lung tissue lysate 2800ug.
IHC staining of human appendicitis using 13938-1-AP
Immunohistochemical analysis of paraffin-embedded human appendicitis tissue slide using 13938-1-AP (Calponin antibody) at dilution of 1:4000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).
IF Staining of mouse heart using 13938-1-AP
Immunofluorescent analysis of (4% PFA) fixed paraffin-embedded mouse heart tissue using Calponin antibody (13938-1-AP) at dilution of 1:200 and Multi-rAb CoraLite ® Plus 488-Goat Anti-Rabbit Recombinant Secondary Antibody (H+L) (RGAR002). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).
IF Staining of C2C12 using 13938-1-AP
Immunofluorescent analysis of (-20°C Methanol) fixed C2C12 cells using Calponin antibody (13938-1-AP) at dilution of 1:400 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L).
IF Staining of H9C2 using 13938-1-AP
Immunofluorescent analysis of (-20°C Ethanol) fixed H9C2 cells using Calponin antibody (13938-1-AP) at dilution of 1:200 and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L) (SA00013-2).
IF Staining of C2C12 using 13938-1-AP
Immunofluorescent analysis of (-20°C Methanol) fixed C2C12 cells using Calponin antibody (13938-1-AP) at dilution of 1:200 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L).
FC experiment of C2C12 using 13938-1-AP
1X10^6 C2C12 cells were intracellularly stained with 0.4 ug Anti-Human Calponin (13938-1-AP) and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) at dilution 1:1000 (red), or 0.4 ug Control Antibody. Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer.

Featured Product
KD/KO Validated

Calponin Polyclonal antibody

Calponin Polyclonal Antibody for WB, IHC, IF/ICC, IF-P, FC (Intra), IP, ELISA

Cat No. 13938-1-AP

Publications(61)

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse, rat and More (2)

Applications

WB, IHC, IF/ICC, IF-P, FC (Intra), IP, ELISA

Synonyms

CNN1, Basic calponin, Calponin 1, Calponin-1, CNN 1

Formulation: PBS, Azide, Glycerol

PBS, Azide, Glycerol

Conjugate: Unconjugated

Unconjugated

CoraLite® Plus 488 CoraLite®594

Size/Concentration:

-/ -

ご購入について

国内販売は「コスモ・バイオ株式会社」を通じて行っております。お見積り・ご注文はお近くの販売代理店へご連絡ください。

国内在庫・納期について

約2万点のプロテインテック製品をコスモバイオ社物流センター（国内）に在庫しています。国内在庫の有無はコスモバイオ社ホームページの「品番検索」でカタログ番号を検索して確認できます。

保証・サポートについて

テクニカルサポートまたはご購入後1年間の交換／補填対応を承ります。詳細はこちらをご覧ください。

Overview

Tested Applications
Product Information
Publications (61)
Protocols

データシート［PDF］を印刷

MSDS

Tested Applications

Positive WB detected in	mouse colon tissue, mouse heart tissue, mouse lung tissue, mouse uterus tissue
Positive IP detected in	mouse lung tissue
Positive IHC detected in	human appendicitis tissue **Note: suggested antigen retrieval with TE buffer pH 9.0; () Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0***
Positive IF-P detected in	mouse heart tissue
Positive IF/ICC detected in	C2C12 cells, H9C2 cells
Positive FC (Intra) detected in	C2C12 cells

Recommended dilution

Application	Dilution
Western Blot (WB)	WB : 1:5000-1:50000
Immunoprecipitation (IP)	IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate
Immunohistochemistry (IHC)	IHC : 1:2000-1:8000
Immunofluorescence (IF)-P	IF-P : 1:50-1:500
Immunofluorescence (IF)/ICC	IF/ICC : 1:200-1:800
Flow Cytometry (FC) (INTRA)	FC (INTRA) : 0.40 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

Published Applications

KD/KO	See 1 publications below
WB	See 40 publications below
IHC	See 8 publications below
IF	See 17 publications below

Product Information

13938-1-AP targets Calponin in WB, IHC, IF/ICC, IF-P, FC (Intra), IP, ELISA applications and shows reactivity with human, mouse, rat samples.

Tested Reactivity	human, mouse, rat
Cited Reactivity	human, mouse, rat, pig, bovine
Host / Isotype	Rabbit / IgG
Class	Polyclonal
Type	Antibody
Immunogen	CatNo: Ag4989 Product name: Recombinant human Calponin protein Source: e coli.-derived, PGEX-4T Tag: GST Domain: 1-297 aa of BC022015 Sequence: MSSAHFNRGPAYGLSAEVKNKLAQKYDHQREQELREWIEGVTGRRIGNNFMDGLKDGIILCEFINKLQPGSVKKINESTQNWHQLENIGNFIKAITKYGVKPHDIFEANDLFENTNHTQVQSTLLALASMAKTKGNKVNVGVKYAEKQERKFEPGKLREGRNIIGLQMGTNKFASQQGMTAYGTRRHLYDPKLGTDQPLDQATISLQMGTNKGASQAGMTAPGTKRQIFEPGLGMEHCDTLNVSLQMGSNKGASQRGMTVYGLPRQVYDPKYCLTPEYPELGEPAHNHHAHNYYNSA 相同性解析による交差性が予測される生物種
Full Name	calponin 1, basic, smooth muscle
Calculated molecular weight	33 kDa
Observed molecular weight	35 kDa
GenBank accession number	BC022015
Gene Symbol	Calponin
Gene ID (NCBI)	1264
RRID	AB_2082010
Conjugate	Unconjugated
Form
Form	Liquid
Purification Method	Antigen affinity purification
UNIPROT ID	P51911
Storage Buffer	PBS with 0.02% sodium azide and 50% glycerol{{ptg:BufferTemp}}7.3
Storage Conditions	Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage.

Background Information

Calponin is a family of actin filament-associated proteins which regulate smooth muscle cell contraction. Three isoforms of calponin exist: calponin h1 (CNN1) , calponin h2 (CNN2) and calponin 3 (CNN3). CNN1 is a basic 34-kD protein specifically expressed in smooth muscle and a marker of smooth muscle cell differentiation. This antibody raised against the full-length of human CNN1 may cross-react with CNN2 and CNN3.

Protocols

Product Specific Protocols
FC protocol for Calponin antibody 13938-1-AP	Download protocol
IF protocol for Calponin antibody 13938-1-AP	Download protocol
IHC protocol for Calponin antibody 13938-1-AP	Download protocol
IP protocol for Calponin antibody 13938-1-AP	Download protocol
WB protocol for Calponin antibody 13938-1-AP	Download protocol

Standard Protocols
Click here to view our Standard Protocols

Publications

Species	Application	Title
	IHC	Circ Res Mitochondrial Protein Poldip2 Controls VSMC Differentiated Phenotype by O-Linked GlcNAc Transferase-Dependent Inhibition of a Ubiquitin Proteasome System. Authors - Felipe Paredes View Article
mouse	WB	J Clin Invest Circular RNA circEsyt2 regulates vascular smooth muscle cell remodeling via splicing regulation. Authors - Xue Gong View Article
rat	IF	Acta Biomater Hybrid electrospun rapamycin-loaded small-diameter decellularized vascular grafts effectively inhibit intimal hyperplasia. Authors - Yang Yang View Article
mouse	WB	Theranostics Salvia miltiorrhiza-derived miRNAs suppress vascular remodeling through regulating OTUD7B/KLF4/NMHC IIA axis. Authors - Gao-Shan Yang View Article
rat	WB	Phytomedicine Betulinaldehyde inhibits vascular remodeling by regulating the microenvironment through the PLCγ1/Ca2+/MMP9 pathway Authors - Yangxia Fu View Article
rat	WB	Phytomedicine Quercetin improves airway remodeling in COPD rats by suppressing phenotypic switch of ASMCs via inhibiting the Wnt5a/β-catenin pathway Authors - Hui Zhou View Article
