Validation Data Gallery
Tested Applications

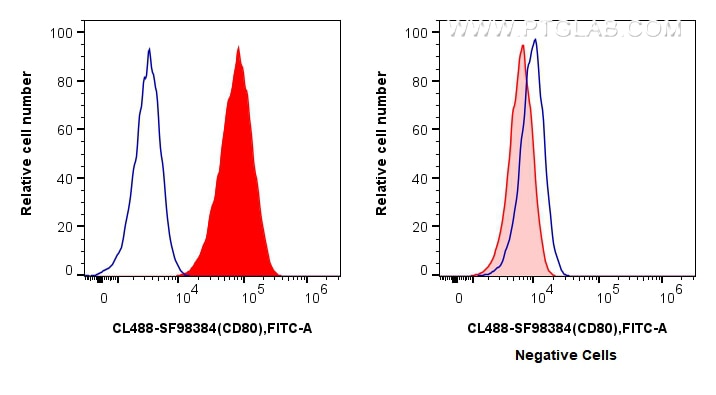

| Positive FC detected in | Raji cells |
Recommended dilution
| Application | Dilution |
|---|---|
| Flow Cytometry (FC) | FC : 0.25 ug per 10^6 cells in a 100 µl suspension |
| It is recommended that this reagent should be titrated in each testing system to obtain optimal results. | |
| Sample-dependent, Check data in validation data gallery. | |
Product Information
CL488-SF98384 targets CD80 in FC applications and shows reactivity with human samples.
| Tested Reactivity | human |
| Host / Type | Rabbit / scFv |
| Class | Recombinant |
| Type | Single-chain variable fragment antibody (scFv) |
| Immunogen |
CatNo: Eg3505 Product name: Recombinant Human CD80/B7-1 protein (rFc Tag) Source: mammalian cells-derived, pHZ-KIsec-C-rFc Tag: C-rFc Domain: 35-242 aa of NM_005191 Sequence: VIHVTKEVKEVATLSCGHNVSVEELAQTRIYWQKEKKMVLTMMSGDMNIWPEYKNRTIFDITNNLSIVILALRPSDEGTYECVVLKYEKDAFKREHLAEVTLSVKADFPTPSISDFEIPTSNIRRIICSTSGGFPEPHLSWLENGEELNAINTTVSQDPETELYAVSSKLDFNMTTNHSFMCLIKYGHLRVNQTFNWNTTKQEHFPDN 相同性解析による交差性が予測される生物種 |
| Full Name | CD80 molecule |
| Calculated molecular weight | 33 kDa |
| GenBank accession number | NM_005191 |
| Gene Symbol | CD80 |
| Gene ID (NCBI) | 941 |
| RRID | AB_3748013 |
| Conjugate | CoraLite® Plus 488 Fluorescent Dye |
| Excitation/Emission maxima wavelengths | 493 nm / 522 nm |
| 激发激光 | Blue laser (488 nm) |
| 来源 | Anti-Human CD80 scFv from clone 242913B11, consisting of VH-GGGGS linker-VL (N- to C-terminus), with a His tag at the C-terminus. |
| Form | |
| Form | Liquid |
| Purification Method | Affinity purification |
| Storage Buffer | 50mM HEPES, 150mM NaCl, 5mM EDTA, 0.1% CHAPS, 10% Sucrose and 0.1% Proclin 300{{ptg:BufferTemp}}7.3 |
| Storage Conditions | Store at 2-8°C. Avoid exposure to light. Stable for one year after shipment. |
Background Information
CD80 (also known as B7-1) is a type I membrane protein that is a member of the immunoglobulin superfamily, with an extracellular immunoglobulin constant-like domain and a variable-like domain required for receptor binding. It is expressed on antigen-presenting cells (APCs), including B cells, dendritic cells, monocytes, and macrophages. CD80 is the receptor for the proteins CD28 and CTLA-4 found on the surface of T-cells. It is involved in the costimulatory signal essential for T-lymphocyte activation. T-cell proliferation and cytokine production is induced by the binding of CD28, binding to CTLA-4 has opposite effects and inhibits T-cell activation. CD80 also acts as a cellular attachment receptor for adenovirus subgroup B. (PMID: 7545666; 12015893; 16920215)
Protocols
| Product Specific Protocols | |
|---|---|
| FC protocol for CL Plus 488 CD80 antibody CL488-SF98384 | Download protocol |
| Standard Protocols | |
|---|---|
| Click here to view our Standard Protocols |
