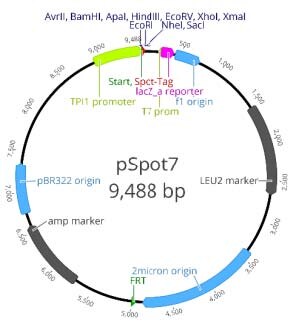

  • TPI1 promoter: 7232-9 MCS: 14-73 Spot-Tag®: 73-108 Stop codon (TAA): 109-111 T7 primer site: 223-241 Leucin marker (LEU2): 1557-2663 CEN replication origin: 3391-3909 Ampicillin resistance gene: 4041-4901 pRB322 replication origin: 5056-5675

    TPI1 promoter: 7232-9 MCS: 14-73 Spot-Tag®: 73-108 Stop codon (TAA): 109-111 T7 primer site: 223-241 Leucin marker (LEU2): 1557-2663 CEN replication origin: 3391-3909 Ampicillin resistance gene: 4041-4901 pRB322 replication origin: 5056-5675

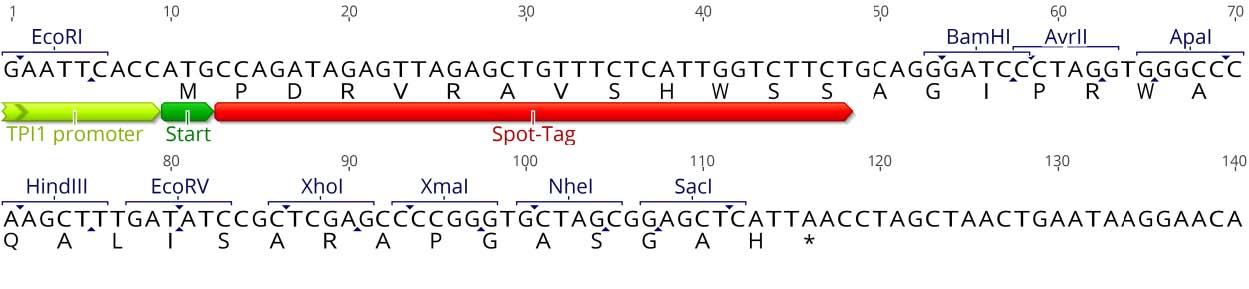

  • Multiple cloning site (MCS)

    Multiple cloning site (MCS)

ChromoTek pSpot7 vector

The plasmid pSpot7 is an expression vector for Spot-Tag® fusion proteins in S. cerevisiae. After cloning the protein of interest (POI) into the multiple cloning site (MCS) provided by pSpot7, the Spot-Tag® (sequence: PDRVRAVSHWSS) will be fused to the N-terminus of the POI.
Cat No. ev-7

Vector type

yeast expression vector

Promoter

TPI1

Reporter

Spot-Tag® N-terminal

pSpot7 vector, Spot vector

Size/Concentration:

-/ -


ご購入について

国内販売は「コスモ・バイオ株式会社」を通じて行っております。お見積り・ご注文はお近くの販売代理店へご連絡ください。


国内在庫・納期について

約2万点のプロテインテック製品をコスモバイオ社物流センター(国内)に在庫しています。国内在庫の有無はコスモバイオ社ホームページの「品番検索」でカタログ番号を検索して確認できます。


保証・サポートについて

テクニカルサポートまたはご購入後1年間の交換/補填対応を承ります。詳細はこちらをご覧ください。


Product Information

The plasmid pSpot7 is an expression vector for Spot-Tag® fusion proteins in S. cerevisiae. After cloning the protein of interest (POI) into the multiple cloning site (MCS) provided by pSpot7, the Spot-Tag® (sequence: PDRVRAVSHWSS) will be fused to the N-terminus of the POI.

ApplicationsProtein expression
Vector typeyeast expression vector
PromoterTPI1
Replication2µ (S. cerevisiae) pBR322 (E. coli)
ReporterSpot-Tag® (PDRVRAVSHWSS) N-terminal
Selectionleucin (S. cerevisiae) ampicillin (E. coli)

Documentation

SDS
ev-7_SDS_pSpot7 (EN)
Datasheet
ev-7.pdf
