Validation Data Gallery

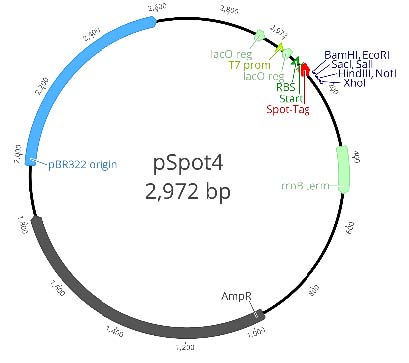

  • T7 promoter: 1-19 Lac operon: 18-46 RBS: 64-80 Start codon (ATG): 88-90 Spot-Tag®: 91-126 MCS: 127-172 rrnB terminator: 364-510 Ampicillin resistance gene: 958-1818 pRB322 replication origin: 1973-2592 Lac operon: 2898-2925

    T7 promoter: 1-19 Lac operon: 18-46 RBS: 64-80 Start codon (ATG): 88-90 Spot-Tag®: 91-126 MCS: 127-172 rrnB terminator: 364-510 Ampicillin resistance gene: 958-1818 pRB322 replication origin: 1973-2592 Lac operon: 2898-2925

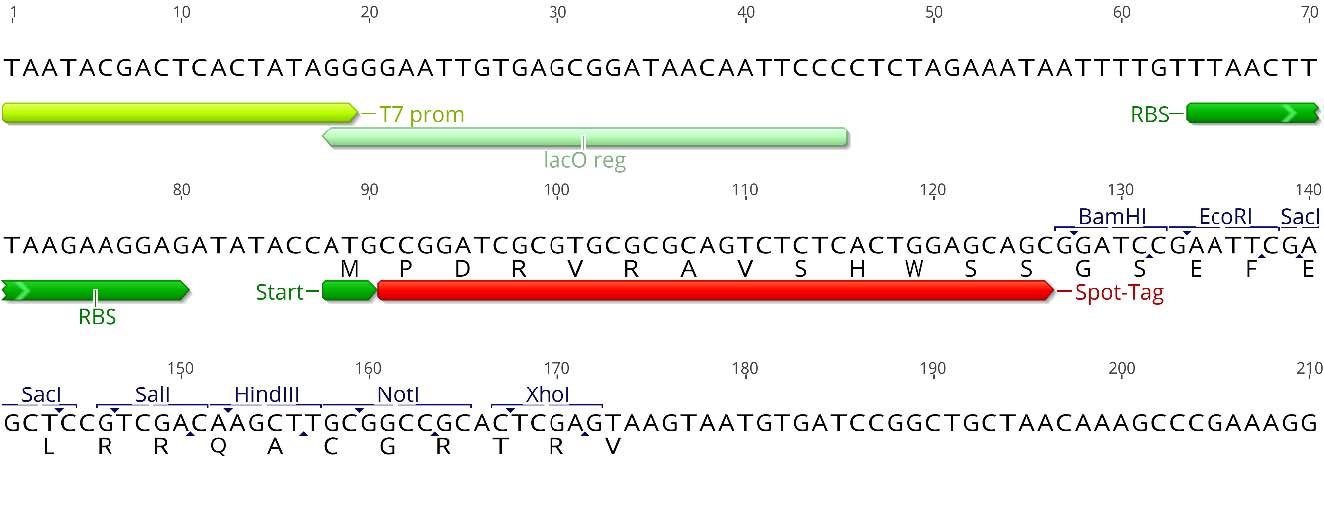

  • Multiple cloning site (MCS)

    Multiple cloning site (MCS)

ChromoTek pSpot4 vector

The plasmid pSpot4 is an expression vector for Spot-Tag® fusion proteins in E. coli. After cloning the protein of interest (POI) into the multiple cloning site (MCS) provided by pSpot4, the Spot-Tag® (sequence: PDRVRAVSHWSS) will be fused to the N-terminus of the POI.
Cat No. ev-4

Vector type

bacterial expression vector

Promoter

T7

Reporter

Spot-Tag® N-terminal

pSpot4 vector, Spot vector

Size/Concentration:

-/ -


ご購入について

国内販売は「コスモ・バイオ株式会社」を通じて行っております。お見積り・ご注文はお近くの販売代理店へご連絡ください。


国内在庫・納期について

約2万点のプロテインテック製品をコスモバイオ社物流センター(国内)に在庫しています。国内在庫の有無はコスモバイオ社ホームページの「品番検索」でカタログ番号を検索して確認できます。


保証・サポートについて

テクニカルサポートまたはご購入後1年間の交換/補填対応を承ります。詳細はこちらをご覧ください。


Product Information

The plasmid pSpot4 is an expression vector for Spot-Tag® fusion proteins in E. coli. After cloning the protein of interest (POI) into the multiple cloning site (MCS) provided by pSpot4, the Spot-Tag® (sequence: PDRVRAVSHWSS) will be fused to the N-terminus of the POI.

ApplicationsProtein expression
Vector typebacterial expression vector
PromoterT7
ReplicationpBR322
ReporterSpot-Tag® (PDRVRAVSHWSS) N-terminal
Selectionampicillin
