Validation Data Gallery
Filter:
Tested Applications

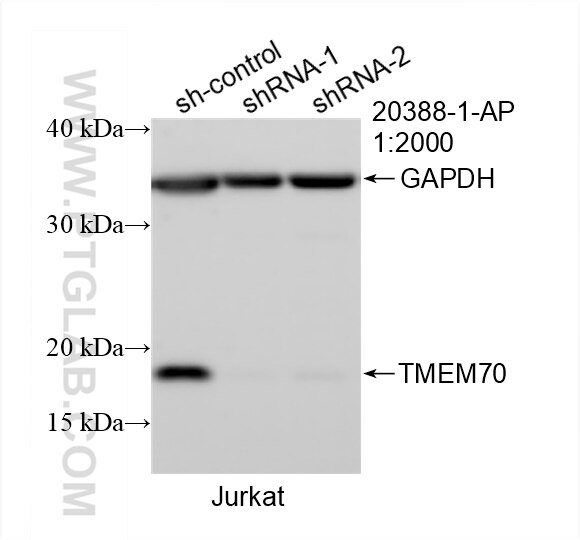

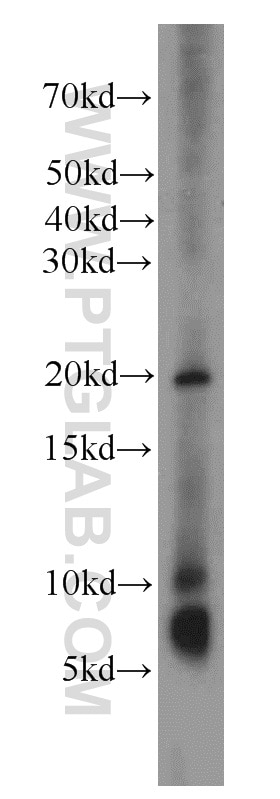

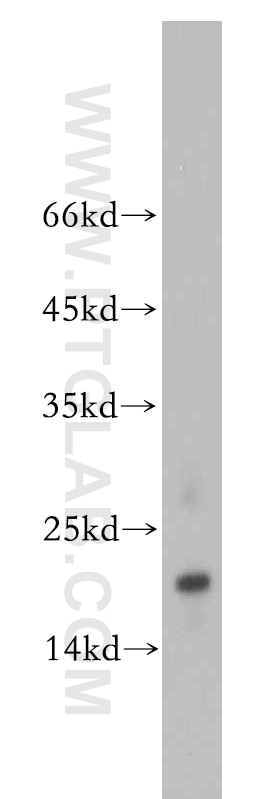

| Positive WB detected in | A2780 cells, Jurkat cells |

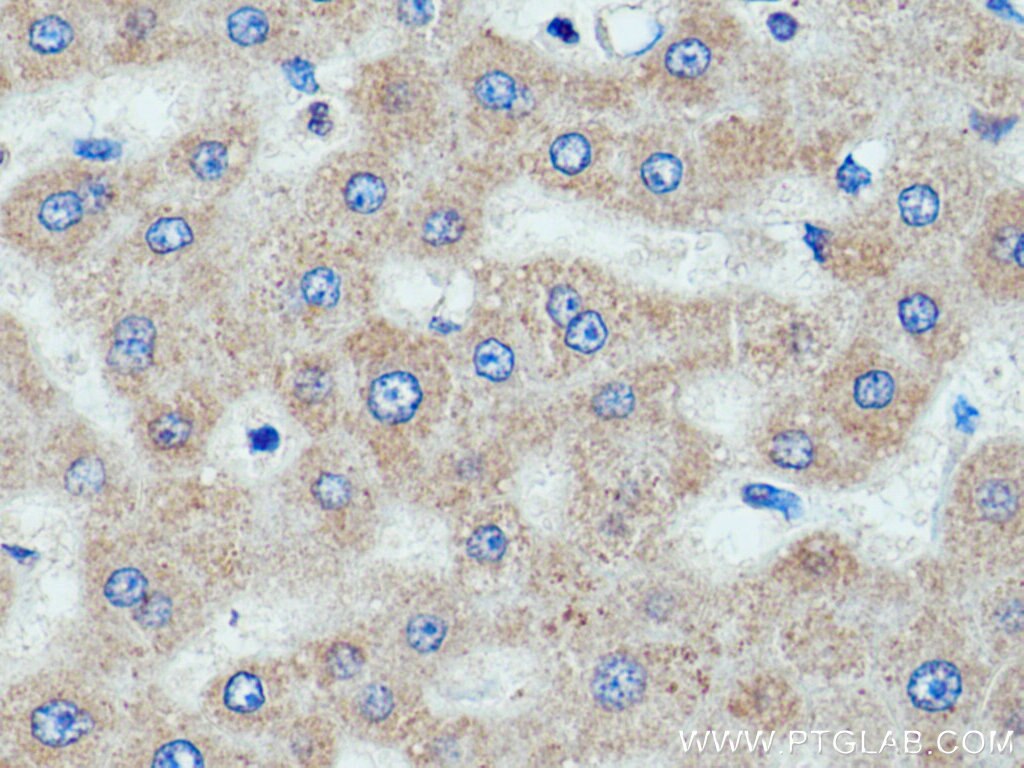

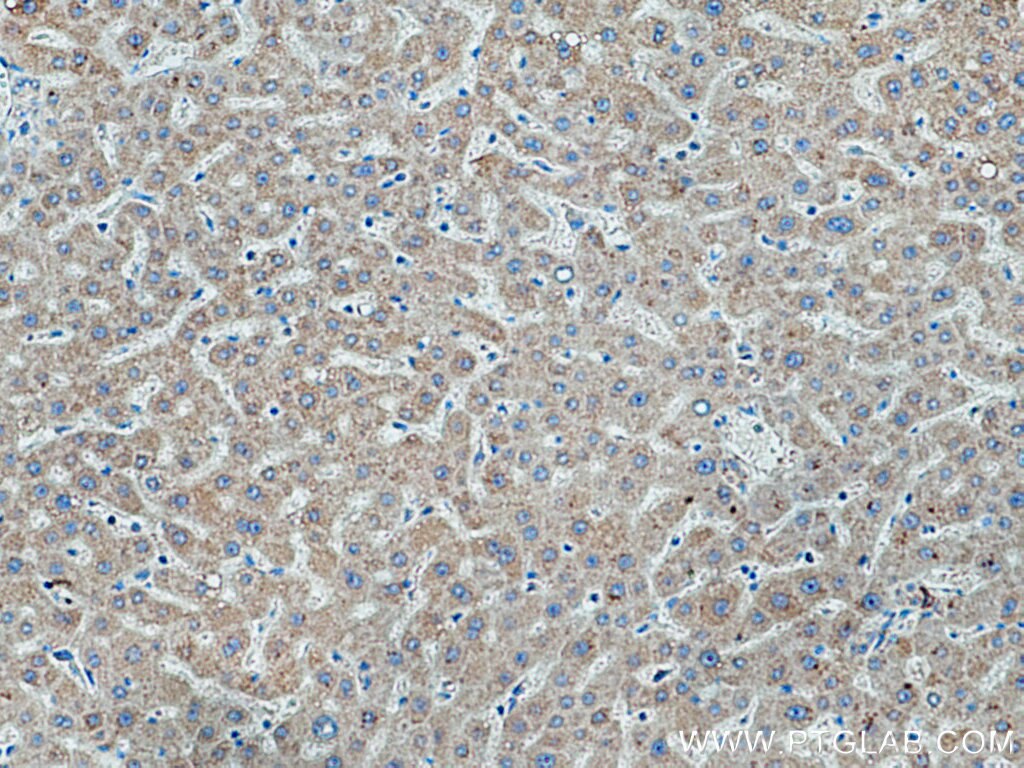

| Positive IHC detected in | human liver tissue Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0 |
Recommended dilution
| Application | Dilution |
|---|---|
| Western Blot (WB) | WB : 1:1000-1:4000 |
| Immunohistochemistry (IHC) | IHC : 1:50-1:500 |
| It is recommended that this reagent should be titrated in each testing system to obtain optimal results. | |
| Sample-dependent, Check data in validation data gallery. | |
Published Applications
| KD/KO | See 2 publications below |
| WB | See 5 publications below |
Product Information
20388-1-AP targets TMEM70 in WB, IHC, ELISA applications and shows reactivity with human, mouse samples.
| Tested Reactivity | human, mouse |
| Cited Reactivity | human, mouse |
| Host / Isotype | Rabbit / IgG |
| Class | Polyclonal |
| Type | Antibody |
| Immunogen | TMEM70 fusion protein Ag14226 相同性解析による交差性が予測される生物種 |
| Full Name | transmembrane protein 70 |
| Calculated molecular weight | 260 aa, 29 kDa |
| Observed molecular weight | 18 kDa |
| GenBank accession number | BC002748 |
| Gene Symbol | TMEM70 |
| Gene ID (NCBI) | 54968 |
| RRID | AB_10694436 |
| Conjugate | Unconjugated |
| Form | Liquid |
| Purification Method | Antigen affinity purification |
| UNIPROT ID | Q9BUB7 |
| Storage Buffer | PBS with 0.02% sodium azide and 50% glycerol , pH 7.3 |
| Storage Conditions | Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage. |
Background Information
TMEM70 belongs to the TMEM70 family. It is involved in biogenesis of mitochondrial ATP synthase. Defects in TMEM70 are a cause of mitochondrial encephalocardiomyopathy neonatal due to ATP synthase deficiency (MT-ATPSD). A publication(PMID:21147908) identifies that TMEM70 gene defect as a pan-ethnic disorder and further redefines it as the most common cause of nuclear-origin ATP synthase deficiency.
Protocols
| Product Specific Protocols | |
|---|---|
| WB protocol for TMEM70 antibody 20388-1-AP | Download protocol |
| IHC protocol for TMEM70 antibody 20388-1-AP | Download protocol |
| Standard Protocols | |
|---|---|
| Click here to view our Standard Protocols |
Publications
| Species | Application | Title |
|---|---|---|
Inflammation IRF-1 Regulates Mitochondrial Respiration and Intrinsic Apoptosis Under Metabolic Stress through ATP Synthase Ancillary Factor TMEM70
| ||
Neurogenetics TMEM70: a mutational hot spot in nuclear ATP synthase deficiency with a pivotal role in complex V biogenesis. | ||
JIMD Rep Common and Novel TMEM70 Mutations in a Cohort of Italian Patients with Mitochondrial Encephalocardiomyopathy. | ||
Life Sci Alliance Mitochondrial stress response triggered by defects in protein synthesis quality control.
|
