Validation Data Gallery

Filter: AllWBIPIHC

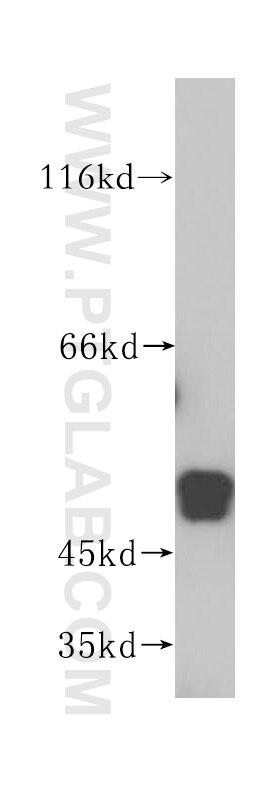

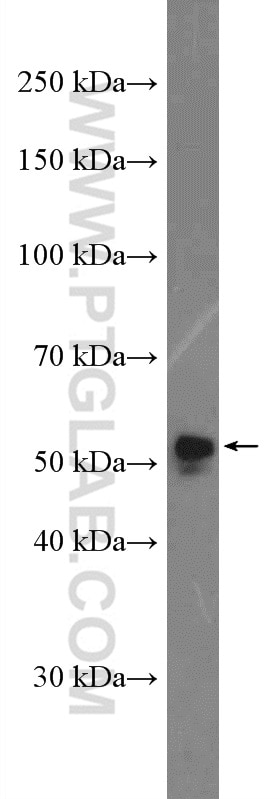

WB analysis of HeLa using 16018-1-AP
HeLa cells were subjected to SDS PAGE followed by western blot with 16018-1-AP (NAP1L4 antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

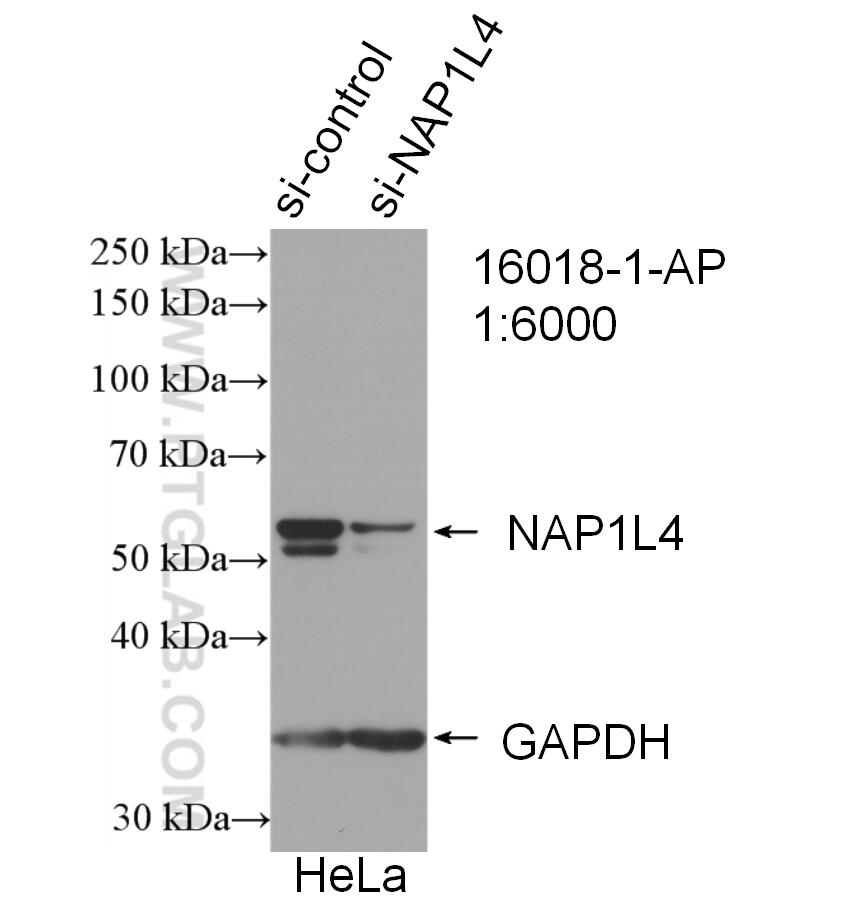

WB analysis of HeLa using 16018-1-AP
WB result of NAP1L4 antibody (16018-1-AP; 1:6000; incubated at room temperature for 1.5 hours) with sh-Control and sh-NAP1L4 transfected HeLa cells.

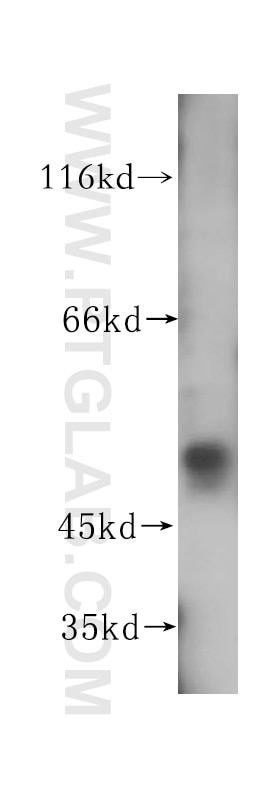

WB analysis of HEK-293 using 16018-1-AP
HEK-293 cells were subjected to SDS PAGE followed by western blot with 16018-1-AP (NAP1L4 antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

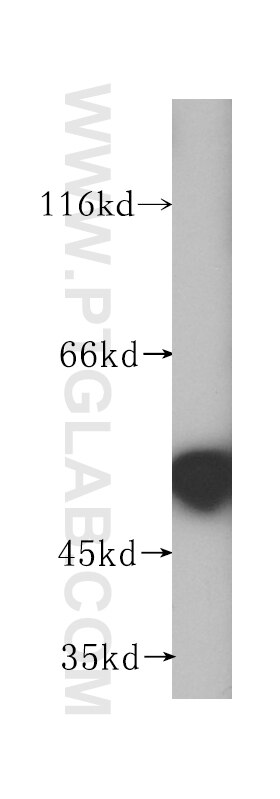

WB analysis of A431 using 16018-1-AP
A431 cells were subjected to SDS PAGE followed by western blot with 16018-1-AP (NAP1L4 Antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

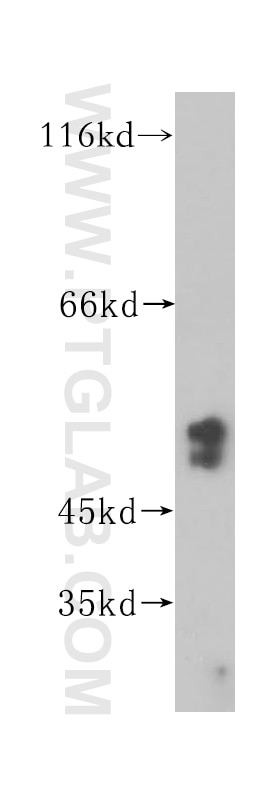

WB analysis of mouse liver using 16018-1-AP
mouse liver tissue were subjected to SDS PAGE followed by western blot with 16018-1-AP (NAP1L4 antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.
WB analysis of mouse testis using 16018-1-AP
mouse testis tissue were subjected to SDS PAGE followed by western blot with 16018-1-AP (NAP1L4 antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.

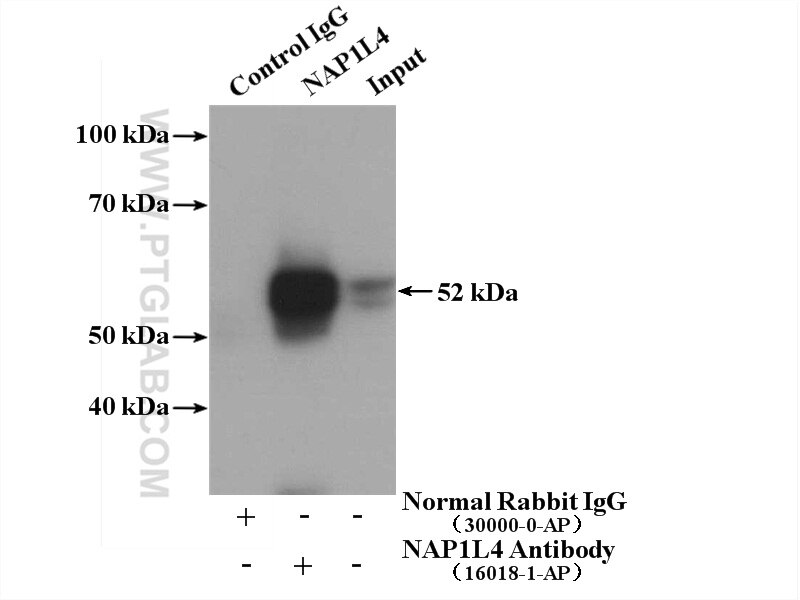

IP experiment of HeLa using 16018-1-AP
IP result of anti-NAP1L4 (IP:16018-1-AP, 4ug; Detection:16018-1-AP 1:1000) with HeLa cells lysate 4000ug.
IHC staining of human liver using 16018-1-AP
Immunohistochemical analysis of paraffin-embedded human liver using 16018-1-AP (NAP1L4 antibody) at dilution of 1:100 (under 10x lens).
IHC staining of human liver using 16018-1-AP
Immunohistochemical analysis of paraffin-embedded human liver using 16018-1-AP (NAP1L4 antibody) at dilution of 1:100 (under 40x lens).

Featured Product
KD/KO Validated

NAP1L4 Polyclonal antibody

NAP1L4 Polyclonal Antibody for WB, IP, IHC, ELISA

Cat No. 16018-1-AP

Publications(8)

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse, rat

Applications

WB, IHC, IF, IP, RIP, ELISA

Synonyms

hNAP2, NAP 2, NAP1L4, NAP2, NAP2L, Nucleosome assembly protein 2

Formulation: PBS, Azide, Glycerol

PBS, Azide, Glycerol

Conjugate: Unconjugated

Unconjugated

Size/Concentration:

-/ -

ご購入について

国内販売は「コスモ・バイオ株式会社」を通じて行っております。お見積り・ご注文はお近くの販売代理店へご連絡ください。

国内在庫・納期について

約2万点のプロテインテック製品をコスモバイオ社物流センター（国内）に在庫しています。国内在庫の有無はコスモバイオ社ホームページの「品番検索」でカタログ番号を検索して確認できます。

保証・サポートについて

テクニカルサポートまたはご購入後1年間の交換／補填対応を承ります。詳細はこちらをご覧ください。

Overview

Tested Applications
Product Information
Publications (8)
Protocols

データシート［PDF］を印刷

MSDS

Tested Applications

Positive WB detected in	HeLa cells, mouse liver tissue, mouse testis tissue, HEK-293 cells, A431 cells
Positive IP detected in	HeLa cells
Positive IHC detected in	human liver tissue **Note: suggested antigen retrieval with TE buffer pH 9.0; () Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0***

Recommended dilution

Application	Dilution
Western Blot (WB)	WB : 1:1000-1:4000
Immunoprecipitation (IP)	IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate
Immunohistochemistry (IHC)	IHC : 1:20-1:200
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

Published Applications

KD/KO	See 1 publications below
WB	See 7 publications below
IHC	See 1 publications below
IF	See 2 publications below
RIP	See 1 publications below

Product Information

16018-1-AP targets NAP1L4 in WB, IHC, IF, IP, RIP, ELISA applications and shows reactivity with human, mouse, rat samples.

Tested Reactivity	human, mouse, rat
Cited Reactivity	human, mouse
Host / Isotype	Rabbit / IgG
Class	Polyclonal
Type	Antibody
Immunogen	CatNo: Ag8827 Product name: Recombinant human NAP1L4 protein Source: e coli.-derived, PET28a Tag: 6*His Domain: 1-375 aa of BC022090 Sequence: MADHSFSDGVPSDSVEAAKNASNTEKLTDQVMQNPRVLAALQERLDNVPHTPSSYIETLPKAVKRRINALKQLQVRCAHIEAKFYEEVHDLERKYAALYQPLFDKRREFITGDVEPTDAESEWHSENEEEEKLAGDMKSKVVVTEKAAATAEEPDPKGIPEFWFTIFRNVDMLSELVQEYDEPILKHLQDIKVKFSDPGQPMSFVLEFHFEPNDYFTNSVLTKTYKMKSEPDKADPFSFEGPEIVDCDGCTIDWKKGKNVTVKTIKKKQKHKGRGTVRTITKQVPNESFFNFFNPLKASGDGESLDEDSEFTLASDFEIGHFFRERIVPRAVLYFTGEAIEDDDNFEEGEEGEEEELEGDEEGEDEDDAEINPKV 相同性解析による交差性が予測される生物種
Full Name	nucleosome assembly protein 1-like 4
Calculated molecular weight	375 aa, 43 kDa
Observed molecular weight	52 kDa
GenBank accession number	BC022090
Gene Symbol	NAP1L4
Gene ID (NCBI)	4676
RRID	AB_2150711
Conjugate	Unconjugated
Form
Form	Liquid
Purification Method	Antigen affinity purification
UNIPROT ID	Q99733
Storage Buffer	PBS with 0.02% sodium azide and 50% glycerol{{ptg:BufferTemp}}7.3
Storage Conditions	Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage.

Protocols

Product Specific Protocols
IHC protocol for NAP1L4 antibody 16018-1-AP	Download protocol
IP protocol for NAP1L4 antibody 16018-1-AP	Download protocol
WB protocol for NAP1L4 antibody 16018-1-AP	Download protocol

Standard Protocols
Click here to view our Standard Protocols

Publications

Species	Application	Title
human	WB	J Cell Biol Phase separation and toxicity of C9orf72 poly(PR) depends on alternate distribution of arginine. Authors - Chen Chen View Article
human	WB	Mol Cell Proteomics A novel immuno-competitive capture mass spectrometry strategy for protein-protein interaction profiling reveals that LATS kinases regulate HCV replication through NS5A phosphorylation. Authors - Hélène Meistermann View Article
mouse	IF,WB	J Virol NAP1L1 and NAP1L4 binding to Hypervariable Domain of Chikungunya Virus nsP3 Protein is bivalent and requires phosphorylation. Authors - Francisco Dominguez View Article
human	WB,IHC	J Dermatol Sci Nucleosome assembly protein 1-like 4, a new therapeutic target for proliferation and invasion of melanoma cells. Authors - Satoru Mizuhashi KD Validated View Article
human	WB	Nat Struct Mol Biol Mechanism of client selection by the protein quality-control factor UBE2O Authors - Matthew C J Yip View Article
human	WB	iScience Differential toxicity and localization of arginine-rich C9ORF72 dipeptide repeat proteins depend on de-clustering of positive charges Authors - Tamami Miyagi View Article
