Validation Data Gallery

Filter:

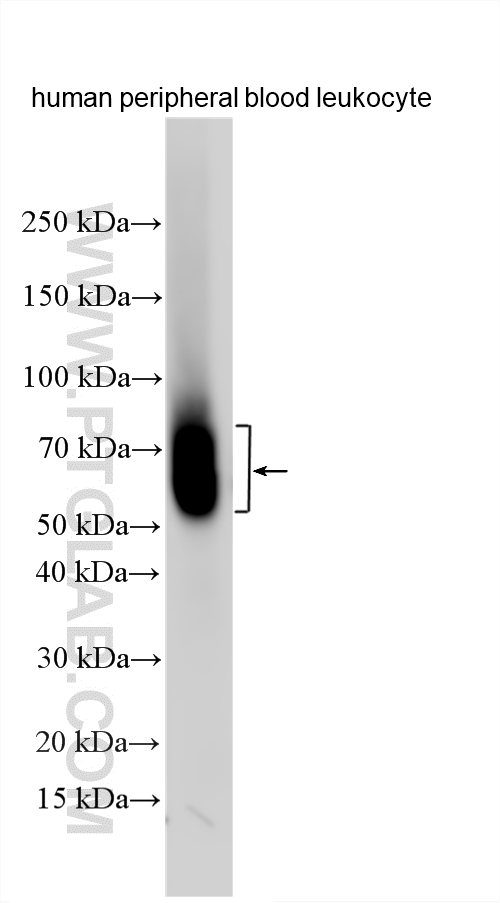

  • Western Blot (WB) analysis of various lysates using CD16 Polyclonal antibody (30567-1-AP)

    WB analysis using 30567-1-AP

    Various lysates were subjected to SDS PAGE followed by western blot with 30567-1-AP (CD16 antibody) at dilution of 1:8000 incubated at room temperature for 1.5 hours.

  • Immunohistochemistry (IHC) staining of human tonsillitis tissue using CD16 Polyclonal antibody (30567-1-AP)

    IHC staining of human tonsillitis using 30567-1-AP

    Immunohistochemical analysis of paraffin-embedded human tonsillitis tissue slide using 30567-1-AP (CD16 antibody) at dilution of 1:400 (under 20x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

  • Immunohistochemistry (IHC) staining of human tonsillitis tissue using CD16 Polyclonal antibody (30567-1-AP)

    IHC staining of human tonsillitis using 30567-1-AP

    Immunohistochemical analysis of paraffin-embedded human tonsillitis tissue slide using 30567-1-AP (CD16 antibody) at dilution of 1:400 (under 20x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

  • Immunofluorescence (IF) / fluorescent staining of human tonsillitis tissue using CD16 Polyclonal antibody (30567-1-AP)

    IF Staining of human tonsillitis using 30567-1-AP

    Immunofluorescent analysis of (4% PFA) fixed paraffin-embedded human tonsillitis tissue using CD16 antibody (30567-1-AP) at dilution of 1:400 and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L) (SA00013-2). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

  • Immunofluorescence (IF) / fluorescent staining of human tonsillitis tissue using CD16 Polyclonal antibody (30567-1-AP)

    IF Staining of human tonsillitis using 30567-1-AP

    Immunofluorescent analysis of (4% PFA) fixed paraffin-embedded human tonsillitis tissue using CD16 antibody (30567-1-AP) at dilution of 1:400 and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L) (SA00013-2). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

CD16 Polyclonal antibody

CD16 Polyclonal Antibody for WB, IHC, IF-P, ELISA
Cat No. 30567-1-AP

Host / Isotype

Rabbit / IgG

Reactivity

human

Applications

WB, IHC, IF-P, ELISA

Synonyms

CD16A, CD16a antigen, CD16-II, Fc gamma RIII, Fc gamma RIII alpha

Formulation:  PBS, Azide, Glycerol
PBS, Azide, Glycerol
Conjugate:  Unconjugated
Unconjugated
Size/Concentration:

-/ -

ご購入について

国内販売は「コスモ・バイオ株式会社」を通じて行っております。お見積り・ご注文はお近くの販売代理店へご連絡ください。

国内在庫・納期について

約2万点のプロテインテック製品をコスモバイオ社物流センター（国内）に在庫しています。国内在庫の有無はコスモバイオ社ホームページの「品番検索」でカタログ番号を検索して確認できます。

保証・サポートについて

テクニカルサポートまたはご購入後1年間の交換／補填対応を承ります。詳細はこちらをご覧ください。

Tested Applications

Positive WB detected inhuman peripheral blood leukocyte
Positive IHC detected inhuman tonsillitis tissue
Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0
Positive IF-P detected inhuman tonsillitis tissue

Recommended dilution

ApplicationDilution
Western Blot (WB)WB : 1:2000-1:16000
Immunohistochemistry (IHC)IHC : 1:200-1:800
Immunofluorescence (IF)-PIF-P : 1:200-1:800
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

Product Information

30567-1-AP targets CD16 in WB, IHC, IF-P, ELISA applications and shows reactivity with human samples.

Tested Reactivity human
Host / Isotype Rabbit / IgG
Class Polyclonal
Type Antibody
Immunogen

CatNo: Eg31662

Product name: Recombinant Human FCGR3A/CD16a (F176V) protein (Myc Tag, His Tag)

Source: mammalian cells-derived, pHZ-KIsec

Tag: Myc & 6*His

Domain: 17-208 aa of BC017865

Sequence: GMRTEDLPKAVVFLEPQWYRVLEKDSVTLKCQGAYSPEDNSTQWFHNESLISSQASSYFIDAATVDDSGEYRCQTNLSTLSDPVQLEVHIGWLLLQAPRWVFKEEDPIHLRCHSWKNTALHKVTYLQNGKGRKYFHHNSDFYIPKATLKDSGSYFCRGLVGSKNVSSETVNITITQGLAVSTISSFFPPGYQ

相同性解析による交差性が予測される生物種
Full Name Fc fragment of IgG, low affinity IIIa, receptor (CD16a)
Calculated molecular weight 254 aa, 29 kDa
Observed molecular weight50-70 kDa
GenBank accession numberBC017865
Gene Symbol CD16a
Gene ID (NCBI) 2214
ENSEMBL Gene IDENSG00000203747
Conjugate Unconjugated
Form
FormLiquid
Purification MethodAntigen affinity purification
UNIPROT IDP08637
Storage Buffer PBS with 0.02% sodium azide and 50% glycerol{{ptg:BufferTemp}}7.3
Storage ConditionsStore at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

Background Information

CD16 is a low affinity Fc receptor. It has been identified as Fc receptors FcγRIIIa (CD16a) and FcγRIIIb (CD16b), encoded by two nearly identical genes, FCGR3A and the FCGR3B. In humans, FcγRIIIa/CD16a is a type I transmembrane receptor expressed on macrophages and NK cells. FcγRIIIb/CD16b is a GPI-linked Fc-receptor highly expressed on neutrophils. The two proteins differ by only four amino acid residues in the mature proteins(PMID: 30361439). FCGR3A has a calculated molecular weight of 29 kDa, with an apparent molecular weight of 50-80 kDa due to extensive glycosylation (PMID: 30655272; PMID: 27914599).

Protocols

Product Specific Protocols
IF protocol for CD16 antibody 30567-1-APDownload protocol
IHC protocol for CD16 antibody 30567-1-APDownload protocol
WB protocol for CD16 antibody 30567-1-APDownload protocol
Standard Protocols
Click here to view our Standard Protocols
||
