Validation Data Gallery

Filter: AllWBIPIHCIF/ICCFC (Intra)ChIP

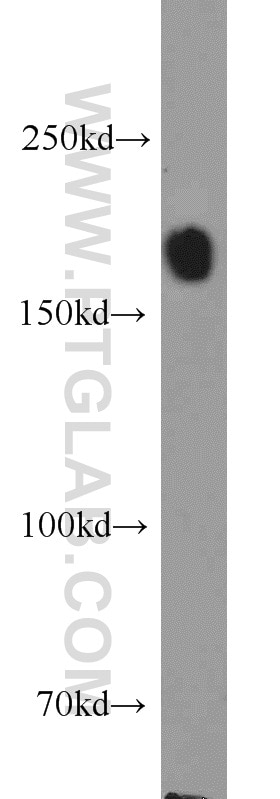

WB analysis of Jurkat using 11231-1-AP
WB result of SETDB1 antibody (11231-1-AP, 1:1000) with si-Control and si-SETDB1 transfected Jurkat cells.

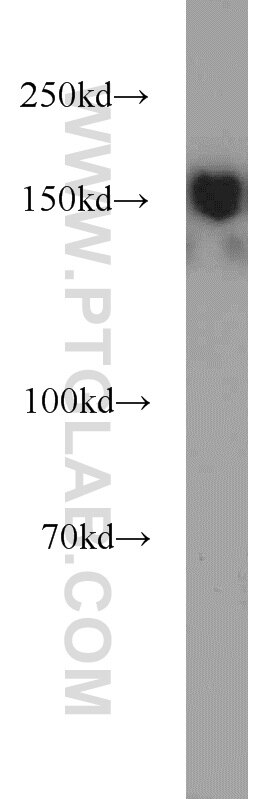

WB analysis of HeLa using 11231-1-AP
WB result of SETDB1 antibody (11231-1-AP; 1:1000; incubated at room temperature for 1.5 hours) with sh-Control and sh-SETDB1 transfected HeLa cells.

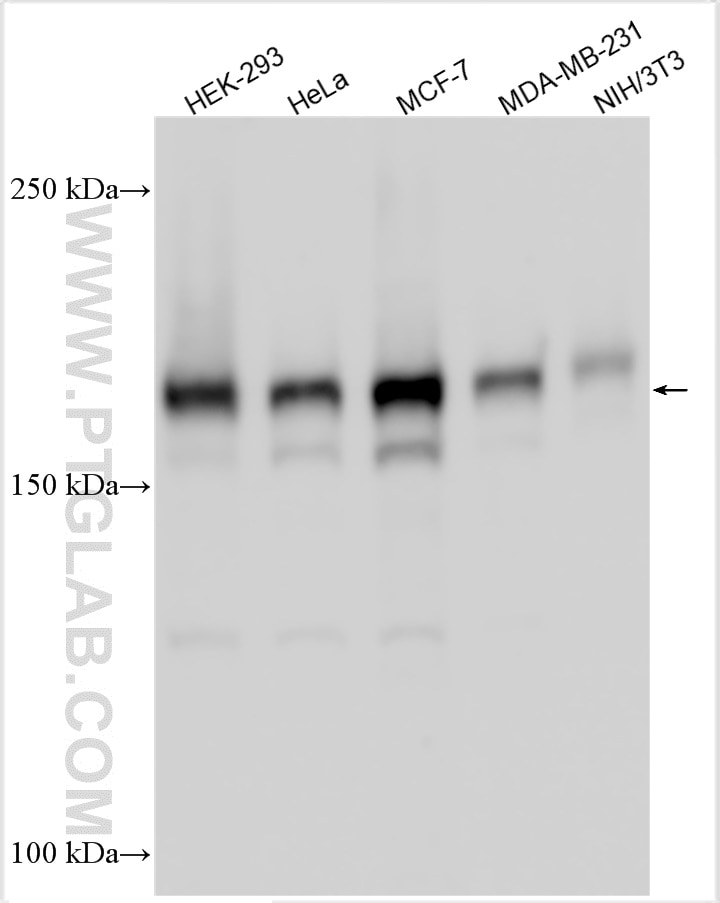

WB analysis using 11231-1-AP
Various lysates were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:6000 incubated at room temperature for 1.5 hours.
WB analysis using 11231-1-AP
Various lysates were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:10000 incubated at room temperature for 1.5 hours.
WB analysis of PC-3 using 11231-1-AP
PC-3 cells were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:500 incubated at room temperature for 1.5 hours.
WB analysis of PC-3 using 11231-1-AP
PC-3 cells were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:500 incubated at room temperature for 1.5 hours.
WB analysis of MCF-7 using 11231-1-AP
MCF7 cells were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:300 incubated at room temperature for 1.5 hours.
WB analysis of MCF-7 using 11231-1-AP
MCF7 cells were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:300 incubated at room temperature for 1.5 hours.
WB analysis of human testis using 11231-1-AP
human testis tissue were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.
WB analysis of Jurkat using 11231-1-AP
Jurkat cells were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:1000 incubated at room temperature for 1.5 hours.
WB analysis of HEK-293 using 11231-1-AP
HEK-293 cells were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:300 incubated at room temperature for 1.5 hours.
WB analysis of HEK-293 using 11231-1-AP
HEK-293 cells were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:300 incubated at room temperature for 1.5 hours.
WB analysis of Jurkat using 11231-1-AP
Jurkat cells were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:500 incubated at room temperature for 1.5 hours.
WB analysis of human testis using 11231-1-AP
human testis tissue were subjected to SDS PAGE followed by western blot with 11231-1-AP (SETDB1 antibody) at dilution of 1:500 incubated at room temperature for 1.5 hours.
IP experiment of MCF-7 using 11231-1-AP
IP result of anti-SETDB1 (IP:11231-1-AP, 3ug; Detection:11231-1-AP 1:1000) with MCF-7 cells lysate 2500ug.
IP experiment of MCF-7 using 11231-1-AP
IP result of anti-SETDB1 (IP:11231-1-AP, 4ug; Detection:11231-1-AP 1:3000) with MCF-7 cells lysate 1720 ug.
IHC staining of human lung cancer using 11231-1-AP
Immunohistochemical analysis of paraffin-embedded human lung cancer tissue slide using 11231-1-AP (SETDB1 antibody) at dilution of 1:200 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).
IHC staining of human testis using 11231-1-AP
Immunohistochemical analysis of paraffin-embedded human testis using 11231-1-AP (SETDB1 antibody) at dilution of 1:50 (under 10x lens).
IHC staining of human testis using 11231-1-AP
Immunohistochemical analysis of paraffin-embedded human testis using 11231-1-AP (SETDB1 antibody) at dilution of 1:50 (under 40x lens).
IHC staining of human testis using 11231-1-AP
Immunohistochemical analysis of paraffin-embedded human testis using 11231-1-AP (SETDB1 antibody) at dilution of 1:50 (under 10x lens).
IHC staining of human testis using 11231-1-AP
Immunohistochemical analysis of paraffin-embedded human testis using 11231-1-AP (SETDB1 antibody) at dilution of 1:50 (under 40x lens).
IHC staining of human lung cancer using 11231-1-AP
Immunohistochemical analysis of paraffin-embedded human lung cancer tissue slide using 11231-1-AP (SETDB1 antibody) at dilution of 1:200 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).
IF Staining of A431 using 11231-1-AP
Immunofluorescent analysis of (4% PFA) fixed A431 cells using SETDB1 antibody (11231-1-AP) at dilution of 1:400 and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L).
FC experiment of A431 using 11231-1-AP
1x10^6 A431 cells were intracellularly stained with 0.4 ug SETDB1 Polyclonal antibody (11231-1-AP) and CoraLite®488-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) (SA00013-2)(red), or 0.4 ug rabbit IgG isotype control (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer.
ChIP experiment of HeLa using 11231-1-AP
Chromatin was prepared from HeLa cells, cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with 15 µg of cross-linked chromatin, 5 µg of SETDB1 Antibody (11231-1-AP) or 5 ug of Normal Rabbit IgG (30000-0-AP), and 30 µl of Protein A Magarose Beads. The immunoprecipitated DNA was quantified by real time PCR. Primers are located in the first kb of the transcribed region.

Featured Product
KD/KO Validated

SETDB1 Polyclonal antibody

SETDB1 Polyclonal Antibody for WB, IHC, IF/ICC, FC (Intra), IP, ChIP, ELISA

Cat No. 11231-1-AP

Publications(93)

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse

Applications

WB, IHC, IF/ICC, FC (Intra), IP, CoIP, ChIP, ELISA

Synonyms

EC:2.1.1.366, ERG-associated protein with SET domain, ESET, H3-K9-HMTase 4, Histone H3-K9 methyltransferase 4

Formulation: PBS, Azide, Glycerol

PBS, Azide, Glycerol

Conjugate: Unconjugated

Unconjugated

Size/Concentration:

-/ -

ご購入について

国内販売は「コスモ・バイオ株式会社」を通じて行っております。お見積り・ご注文はお近くの販売代理店へご連絡ください。

国内在庫・納期について

約2万点のプロテインテック製品をコスモバイオ社物流センター（国内）に在庫しています。国内在庫の有無はコスモバイオ社ホームページの「品番検索」でカタログ番号を検索して確認できます。

保証・サポートについて

テクニカルサポートまたはご購入後1年間の交換／補填対応を承ります。詳細はこちらをご覧ください。

Overview

Tested Applications
Product Information
Publications (93)
Protocols

データシート［PDF］を印刷

MSDS

Tested Applications

Positive WB detected in	HEK-293 cells, HeLa cells, human testis tissue, Jurkat cells, MCF-7 cells, PC-3 cells, MDA-MB-231 cells, NIH/3T3 cells
Positive IP detected in	MCF-7 cells
Positive IHC detected in	human lung cancer tissue, human testis tissue **Note: suggested antigen retrieval with TE buffer pH 9.0; () Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0***
Positive IF/ICC detected in	A431 cells
Positive FC (Intra) detected in	A431 cells
Positive ChIP detected in	HeLa cells

Recommended dilution

Application	Dilution
Western Blot (WB)	WB : 1:2000-1:12000
Immunoprecipitation (IP)	IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate
Immunohistochemistry (IHC)	IHC : 1:50-1:500
Immunofluorescence (IF)/ICC	IF/ICC : 1:200-1:800
Flow Cytometry (FC) (INTRA)	FC (INTRA) : 0.40 ug per 10^6 cells in a 100 µl suspension
Chromatin immunoprecipitation (ChIP)	CHIP : 1:10-1:100
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

Published Applications

KD/KO	See 21 publications below
WB	See 68 publications below
IHC	See 10 publications below
IF	See 12 publications below
IP	See 9 publications below
CoIP	See 4 publications below
ChIP	See 24 publications below

Product Information

11231-1-AP targets SETDB1 in WB, IHC, IF/ICC, FC (Intra), IP, CoIP, ChIP, ELISA applications and shows reactivity with human, mouse samples.

Tested Reactivity	human, mouse
Cited Reactivity	human, mouse
Host / Isotype	Rabbit / IgG
Class	Polyclonal
Type	Antibody
Immunogen	CatNo: Ag1725 Product name: Recombinant human SETDB1 protein Source: e coli.-derived, PGEX-4T Tag: GST Domain: 1-350 aa of BC009362 Sequence: MSSLPGCIGLDAATATVESEEIAELQQAVVEELGISMEELRHFIDEELEKMDCVQQRKKQLAELETWVIQKESEVAHVDQLFDDASRAVTNCESLVKDFYSKLGLQYRDSSSEDESSRPTEIIEIPDEDDDVLSIDSGDAGSRTPKDQKLREAMAALRKSAQDVQKFMDAVNKKSSSQDLHKGTLSQMSGELSKDGDLIVSMRILGKKRTKTWHKGTLIAIQTVGPGKKYKVKFDNKGKSLLSGNHIAYDYHPPADKLYVGSRVVAKYKDGNQVWLYAGIVAETPNVKNKLRFLIFFDDGYASYVTQSELYPICRPLKKTWEDIEDISCRDFIEEYVTAYPNRPMVLLKS 相同性解析による交差性が予測される生物種
Full Name	SET domain, bifurcated 1
Calculated molecular weight	143 kDa
Observed molecular weight	170 kDa
GenBank accession number	BC009362
Gene Symbol	SETDB1
Gene ID (NCBI)	9869
RRID	AB_2186069
Conjugate	Unconjugated
Form
Form	Liquid
Purification Method	Antigen affinity purification
UNIPROT ID	Q15047
Storage Buffer	PBS with 0.02% sodium azide and 50% glycerol{{ptg:BufferTemp}}7.3
Storage Conditions	Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage.

Background Information

SETDB1, also named as ESET, KIAA0067 and KMT1E, belongs to the histone-lysine methyltransferase family. It is a SET domain protein with histone H3-K9-specific methyltransferase activity. H3 'Lys-9' trimethylation is coordinated with DNA methylation and represents a specific tag for epigenetic transcriptional repression by recruiting HP1 (CBX1, CBX3 and/or CBX5) proteins to methylated histones. SETDB1 mainly functions in euchromatin regions, thereby playing a central role in the silencing of euchromatic genes. It probably forms a complex with MBD1 and ATF7IP that represses transcription and couples DNA methylation and histone 'Lys-9' trimethylation. Its activity is dependent on MBD1 and is heritably maintained through DNA replication by being recruited by CAF-1. SETDB1 regulates histone methylation, gene silencing, and transcriptional repression. It has been identified as a target for treatment in Huntington Disease, given that gene silencing and transcription dysfunction likely play a role in the disease pathogenesis. This antibody is a rabbit polyclonal antibody raised against residues near the N terminus of human SETDB1.The calculated molecular weight of SETDB1 is 143 kDa, but the modified SETDB1 protein is about 170 kDa (PMID: 11791185).

Protocols

Product Specific Protocols
IF protocol for SETDB1 antibody 11231-1-AP	Download protocol
IHC protocol for SETDB1 antibody 11231-1-AP	Download protocol
IP protocol for SETDB1 antibody 11231-1-AP	Download protocol
WB protocol for SETDB1 antibody 11231-1-AP	Download protocol

Standard Protocols
Click here to view our Standard Protocols

Publications

Species	Application	Title
mouse	WB	Nature METTL3 regulates heterochromatin in mouse embryonic stem cells. Authors - Wenqi Xu KO Validated View Article
mouse	WB,CoIP	Nature The RNA m6A reader YTHDC1 silences retrotransposons and guards ES cell identity. Authors - Jiadong Liu View Article
mouse,human	WB	Nature Epigenetic silencing by SETDB1 suppresses tumour intrinsic immunogenicity. Authors - Gabriel K Griffin KO Validated View Article
mouse	WB,CoIP,ChIP	Nature KDM5B promotes immune evasion by recruiting SETDB1 to silence retroelements Authors - Shang-Min Zhang View Article
human	WB	Nature Genome surveillance by HUSH-mediated silencing of intronless mobile elements. Authors - Marta Seczynska KD Validated View Article
human	WB	Science GENE SILENCING. Epigenetic silencing by the HUSH complex mediates position-effect variegation in human cells. Authors - Iva A Tchasovnikarova KD Validated View Article
