CoraLite®594-conjugated RAF1 Monoclonal antibody

RAF1 Monoclonal Antibody for IF

Host / Isotype

Mouse / IgG2a

Reactivity

Human, Mouse

Applications

IF

Conjugate

CoraLite®594 Fluorescent Dye

CloneNo.

1D6A1

Cat no : CL594-66592

Synonyms

c Raf, CRAF, NS5, Proto oncogene c RAF, RAF, Raf 1, RAF1

Validation Data Gallery

Applications:
  • IF Staining of HEK-293 using CL594-66592

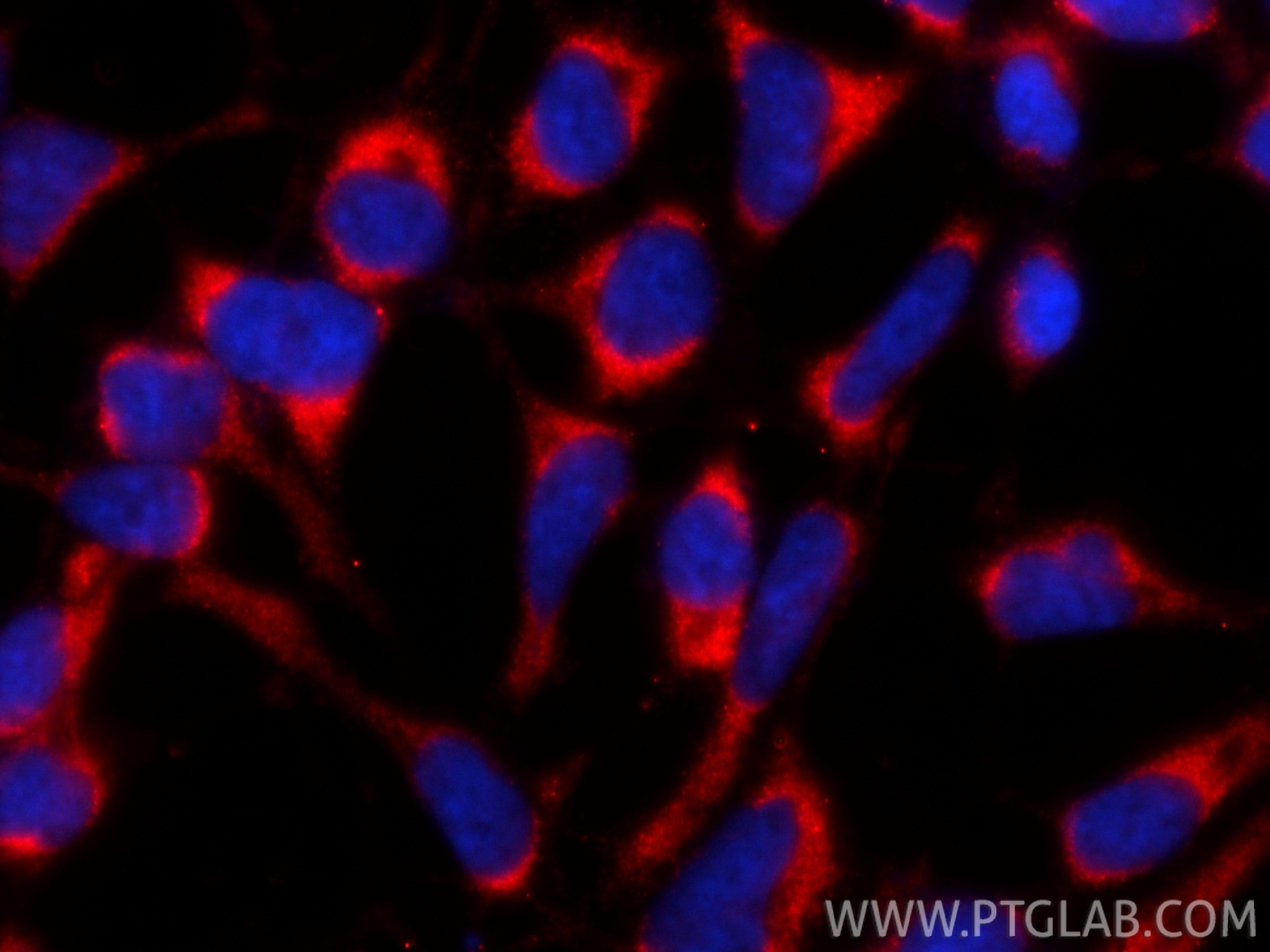

    IF Staining of HEK-293 using CL594-66592

    Immunofluorescent analysis of (-20°C Ethanol) fixed HEK-293 cells using CoraLite®®594 RAF1 antibody (CL594-66592, Clone: 1D6A1 ) at dilution of 1:200.

Tested Applications

Positive IF detected inHEK-293 cells
Planning an IHC experiment? We recommend our IHCeasy RAF1 Ready-To-Use IHC Kit. RAF1 primary antibody included.
For other applications, we recommend the unconjugated version of this antibody, 66592-1-Ig

Recommended dilution

ApplicationDilution
Immunofluorescence (IF)IF : 1:50-1:500
Sample-dependent, check data in validation data gallery

Product Information

CL594-66592 targets RAF1 in IF applications and shows reactivity with Human, Mouse samples.

Tested Reactivity Human, Mouse
Host / Isotype Mouse / IgG2a
Class Monoclonal
Type Antibody
Immunogen RAF1 fusion protein Ag25423 相同性解析による交差性が予測される生物種
Full Name v-raf-1 murine leukemia viral oncogene homolog 1
Calculated molecular weight 648 aa, 73 kDa
Observed molecular weight 70-75 kDa
GenBank accession numberBC018119
Gene symbol RAF1
Gene ID (NCBI) 5894
RRIDAB_2920013
Conjugate CoraLite®594 Fluorescent Dye
Excitation/Emission maxima wavelengths588 nm / 604 nm
Form Liquid
Purification Method Protein A purification
Storage Buffer PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
Storage ConditionsStore at -20°C. Avoid exposure to light. Aliquoting is unnecessary for -20oC storage.

Background Information

Raf-1 proto-oncogene, serine/threonine kinase(RAF1), is a MAP kinase kinase kinase (MAP3K), which functions downstream of the Ras family of membrane associated GTPases to which it binds directly. RAF1 has two isoforms with MW of 73, 75 kDa. RAF1 plays an important role in the control of gene expression involved in the cell division cycle, apoptosis, cell differentiation and cell migration.

Protocols

Product Specific Protocols
IF protocol for CL594 RAF1 antibody CL594-66592Download protocol
Standard Protocols
Click here to view our Standard Protocols
