Validation Data Gallery

Filter: AllWBIPIHCIF/ICC

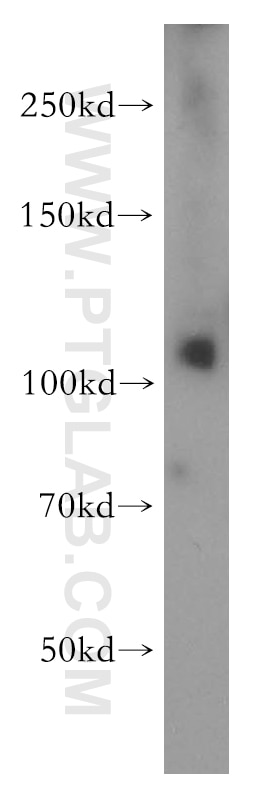

WB analysis of K-562 using 13247-1-AP
K-562 cells were subjected to SDS PAGE followed by western blot with 13247-1-AP (PI4KB antibody) at dilution of 1:300 incubated at room temperature for 1.5 hours.
WB analysis of NIH-3T3 cells (RNAi) using 13247-1-AP
WB result of anti- PI4Kb (13247-1-AP) with NIH-3T3 cells (RNAi).

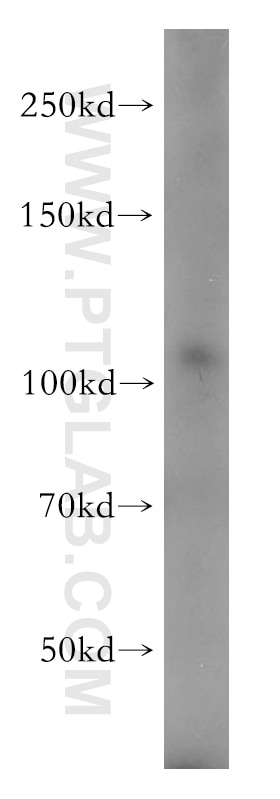

WB analysis of Jurkat using 13247-1-AP
Jurkat cells were subjected to SDS PAGE followed by western blot with 13247-1-AP (PI4KB antibody) at dilution of 1:300 incubated at room temperature for 1.5 hours.

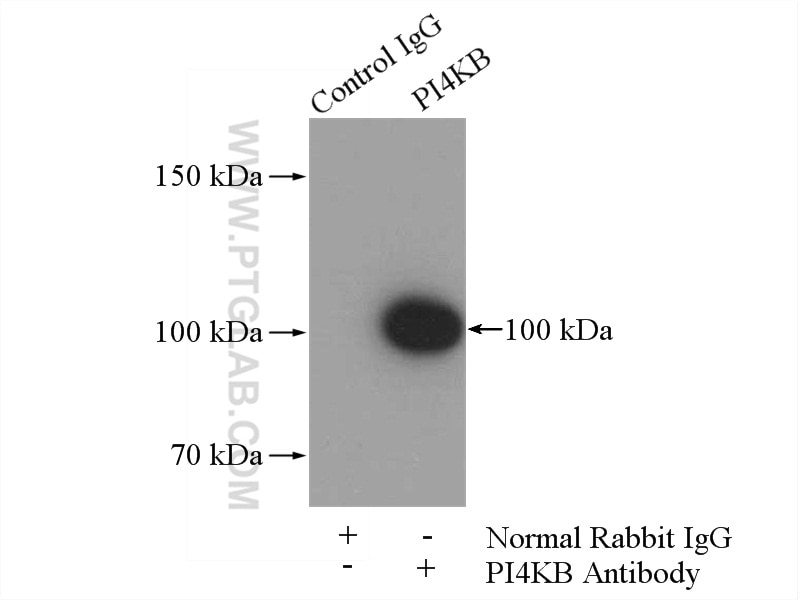

IP experiment of K-562 using 13247-1-AP
IP result of anti-PI4KB (IP:13247-1-AP, 4ug; Detection:13247-1-AP 1:300) with K-562 cells lysate 3600ug.
IHC staining of human liver using 13247-1-AP
Immunohistochemical analysis of paraffin-embedded human liver tissue slide using 13247-1-AP (PI4KB antibody) at dilution of 1:200 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).
IHC staining of human liver using 13247-1-AP
Immunohistochemical analysis of paraffin-embedded human liver tissue slide using 13247-1-AP (PI4KB antibody) at dilution of 1:200 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).
IF Staining of C6 using 13247-1-AP
Immunofluorescent analysis of (-20°C Ethanol) fixed C6 cells using PI4KB antibody (13247-1-AP) at dilution of 1:400 and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L).

Featured Product
KD/KO Validated

PI4KB Polyclonal antibody

PI4KB Polyclonal Antibody for WB, IHC, IF/ICC, IP, ELISA

Cat No. 13247-1-AP

Publications(13)

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse, rat

Applications

WB, IHC, IF/ICC, IP, ELISA

Synonyms

PtdIns 4-kinase beta, PIK4CB, PI4KIII, PI4K-beta, Phosphatidylinositol 4-kinase beta

Formulation: PBS, Azide, Glycerol

PBS, Azide, Glycerol

Conjugate: Unconjugated

Unconjugated

Size/Concentration:

-/ -

ご購入について

国内販売は「コスモ・バイオ株式会社」を通じて行っております。お見積り・ご注文はお近くの販売代理店へご連絡ください。

国内在庫・納期について

約2万点のプロテインテック製品をコスモバイオ社物流センター（国内）に在庫しています。国内在庫の有無はコスモバイオ社ホームページの「品番検索」でカタログ番号を検索して確認できます。

保証・サポートについて

テクニカルサポートまたはご購入後1年間の交換／補填対応を承ります。詳細はこちらをご覧ください。

Overview

Tested Applications
Product Information
Publications (13)
Protocols

データシート［PDF］を印刷

MSDS

Tested Applications

Positive WB detected in	K-562 cells, NIH-3T3 cells (RNAi)
Positive IP detected in	K-562 cells
Positive IHC detected in	human liver tissue **Note: suggested antigen retrieval with TE buffer pH 9.0; () Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0***
Positive IF/ICC detected in	C6 cells

Recommended dilution

Application	Dilution
Western Blot (WB)	WB : 1:500-1:1000
Immunoprecipitation (IP)	IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate
Immunohistochemistry (IHC)	IHC : 1:50-1:500
Immunofluorescence (IF)/ICC	IF/ICC : 1:200-1:800
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

Published Applications

KD/KO	See 1 publications below
WB	See 10 publications below
IF	See 2 publications below

Product Information

13247-1-AP targets PI4KB in WB, IHC, IF/ICC, IP, ELISA applications and shows reactivity with human, mouse, rat samples.

Tested Reactivity	human, mouse, rat
Cited Reactivity	human, mouse, rat
Host / Isotype	Rabbit / IgG
Class	Polyclonal
Type	Antibody
Immunogen	CatNo: Ag3989 Product name: Recombinant human PI4KB protein Source: e coli.-derived, PGEX-4T Tag: GST Domain: 449-801 aa of BC040300 Sequence: IGELQVELPEVHTNSCDNISQFSVDSITSQESKEPVFIAAGDIRRRLSEQLAHTPTAFKRDPEDPSAVALKEPWQEKVRRIREGSPYGHLPNWRLLSVIVKCGDDLRQELLAFQVLKQLQSIWEQERVPLWIKPYKILVISADSGMIEPVVNAVSIHQVKKQSQLSLLDYFLQEHGSYTTEAFLSAQRNFVQSCAGYCLVCYLLQVKDRHNGNILLDAEGHIIHIDFGFILSSSPRNLGFETSAFKLTTEFVDVMGGLDGDMFNYYKMLMLQGLIAARKHMDKVVQIVEIMQQGSQLPCFHGSSTIRNLKERFHMSMTEEQLQLLVEQMVDGSMRSITTKLYDGFQYLTNGIM 相同性解析による交差性が予測される生物種
Full Name	phosphatidylinositol 4-kinase, catalytic, beta
Calculated molecular weight	801 aa, 90 kDa
Observed molecular weight	100 kDa
GenBank accession number	BC040300
Gene Symbol	PI4KB
Gene ID (NCBI)	5298
RRID	AB_2252370
Conjugate	Unconjugated
Form
Form	Liquid
Purification Method	Antigen affinity purification
UNIPROT ID	Q9UBF8
Storage Buffer	PBS with 0.02% sodium azide and 50% glycerol{{ptg:BufferTemp}}7.3
Storage Conditions	Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20^oC storage.

Background Information

PI4KB(phosphatidylinositol 4-kinase beta) is also named as PIK4CB, NPIK, PI4K92 and belongs to the PI3/PI4-kinase family. It may regulate Golgi disintegration/reorganization during mitosis, possibly via its phosphorylation and involved in Golgi-to-plasma membrane trafficking. PI4KB is a type III enzyme that is sensitive to wortmannin(PMID:9020160). This protein has 3 isoforms produced by alternative splicing.

Protocols

Product Specific Protocols
IF protocol for PI4KB antibody 13247-1-AP	Download protocol
IHC protocol for PI4KB antibody 13247-1-AP	Download protocol
IP protocol for PI4KB antibody 13247-1-AP	Download protocol
WB protocol for PI4KB antibody 13247-1-AP	Download protocol

Standard Protocols
Click here to view our Standard Protocols

Publications

Species	Application	Title
human,mouse	WB	Cell Res Intercellular transfer of activated STING triggered by RAB22A-mediated non-canonical autophagy promotes antitumor immunity Authors - Ying Gao View Article
human	IF	EMBO J Defining the proximal interaction networks of Arf GTPases reveals a mechanism for the regulation of PLD1 and PI4KB. Authors - Zhengming Wu View Article
human	WB	PLoS Pathog Enterovirus 71 protease 2Apro and 3Cpro differentially inhibit the cellular endoplasmic reticulum-associated degradation (ERAD) pathway via distinct mechanisms, and enterovirus 71 hijacks ERAD component p97 to promote its replication. Authors - Tao Wang View Article
human		Virol Sin Construction of coxsackievirus B5 viruses with luciferase reporters and their applications in vitro and in vivo Authors - Shangrui Guo View Article
human	WB,IF	J Virol N-terminal acetyltransferase 6 facilitates enterovirus 71 replication by regulating PI4KB expression and replication organelle biogenesis Authors - Hang Yang View Article
mouse	WB	J Neurosci PI4KIIIβ-Mediated Phosphoinositides Metabolism Regulates Function of the VTA Dopaminergic Neurons and Depression-Like Behavior Authors - Yuqi Sang View Article
